Downlight/spot/floodlight
Performance iN Lighting LTF1622DA840 LED-Scheinwerfer 4000K 153W DALI asymmetrische breite Streuoptik LTF1622DA840
Art. No.WSL5510013991 P/NLTF1622DA840 EAN8018367753554 BrandPerformance iN Lighting
Adjustability Rotatable
Beam angle Wide beam 41-80°
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 4000 K
€531.91 incl. VAT
Availability In stock
Delivery time 2–3 working days
Returns 14-day right of withdrawal for consumers
Warranty Manufacturer warranty depending on the product
Product information
Performance iN Lighting LED-Scheinwerfer 4000K 153W DALI asymmetrische breite Streuoptik LTF1622DA840
Performance iN Lighting LTF1622DA840
EAN 8018367753554
Description
LED-Scheinwerfer für den Außen- und Innenbereich, bestehend aus: Mit Polymerpulverlack körnig grau lackiertes Aluminiumdruckgussgehäuse nach vorheriger chemischer Oberflächenbehandlung ISO 9227/12944 - ISO 9223 (C5). Diffusor aus extra klarem, gehärteten Sicherheits-Flachglas. Hochleistungsreflektoren aus metallisiertem Reinstaluminium 99,99%, hochglänzend, oxidations- und irisierungsfrei. Altersbeständige Silikondichtung. DALI dimmbar. Kabelverschraubung M20x1.5 für Kabel mit Ø 10-14 mm. Äußere Schrauben aus Edelstahl. Aluminium-Clip mit Edelstahlfeder, unverlierbar. Stahlbügel, lackiert mit Polyesterpulverlack nach Kataphorese-Beschichtung. Zukunftssichere, wartbare Leuchte. Geschützt gegen Überspannungen bis zu 10 kV. Informationen zu anderen Farbtemperaturen und zum Farbwiedergabeindex erhalten Sie vom Werk.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | LTF1622DA840 |
|---|---|
| EAN | 8018367753554 |
| ETIM | EC001744 |
| Weight | 5.44 kg |
| Weight (Package) | 6 kg |
Designations
Aussenleuchten Außenbeleuchtung Außenleuchten LED Außenleuchte Scheinwerfer Strahler
Adjustability Rotatable
Beam angle Wide beam 41-80°
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 4000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Compatible with Casambi No
Compatible with Google Assistant No
Conductor cross section 1 mm²
Connectable conductor cross section 1 mm²
Connection type Screwed terminal
Constant light output (CLO) No
Covering of the luminaire with thermally insulating material possible No
Degree of protection (IP) IP66
Degree of protection (IP), rear side Other
Degree of protection (NEMA) 4
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI Yes
Dimming DALI-2 Yes
Dimming DMX No
Dimming DSI No
Dimming LineSwitch No
Dimming RF No
Dimming Sine Wave Reduction No
Dimming Touch and Dim No
Dimming Zigbee No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off No
Dimming phase cut-on No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming with push-button No
EF018713 143.6
EF018714 21970
EF018918 None
EF018921 None
EF019111 Yes
EF019128 10
EFUK0027 No
EFUK0028 No
EFUK0029 No
Energy efficiency class of the light source according to EU regulation 2019/2015 D
Exchangeable control gear Yes
Filament test according to IEC 60695-2-11 650 °C - 30 s

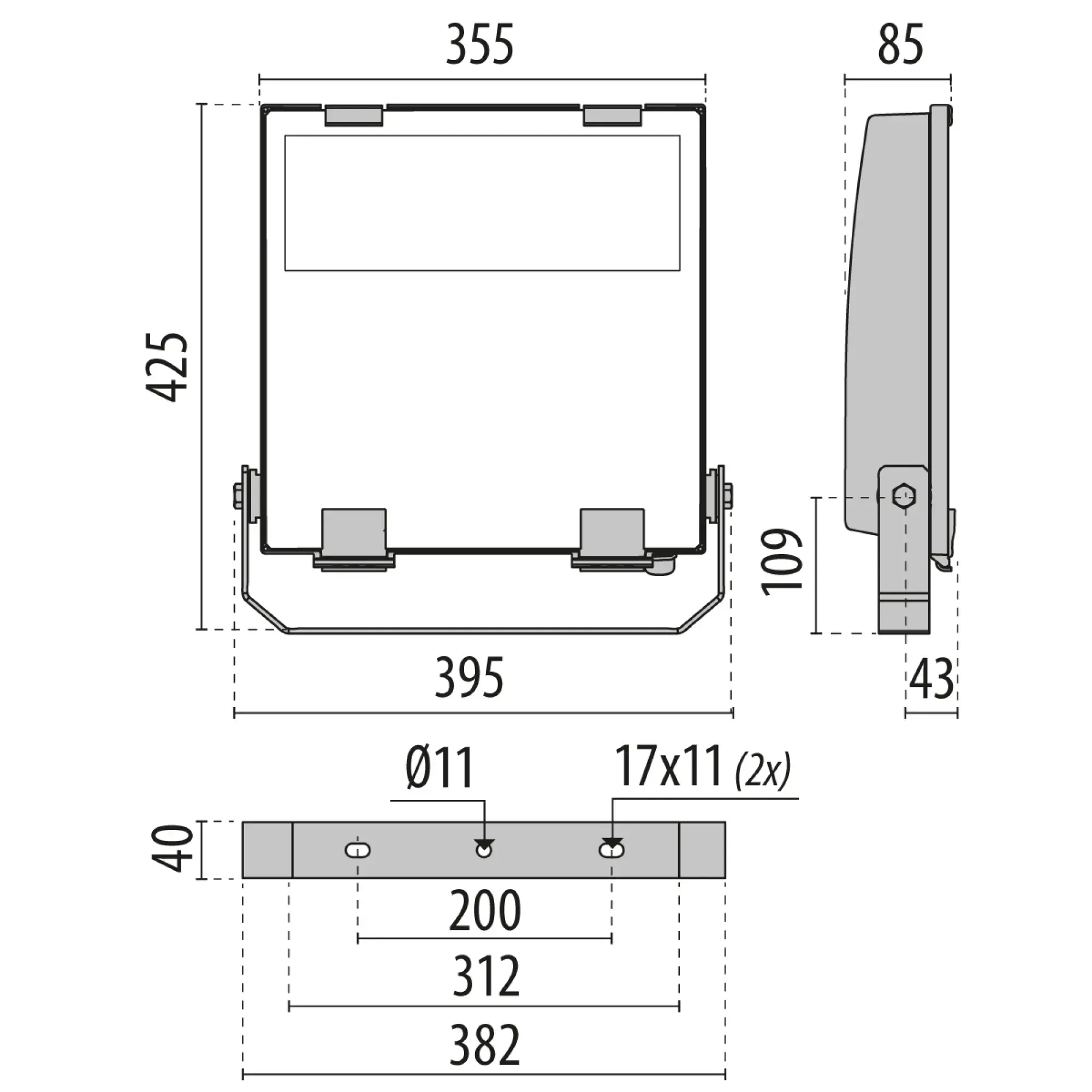

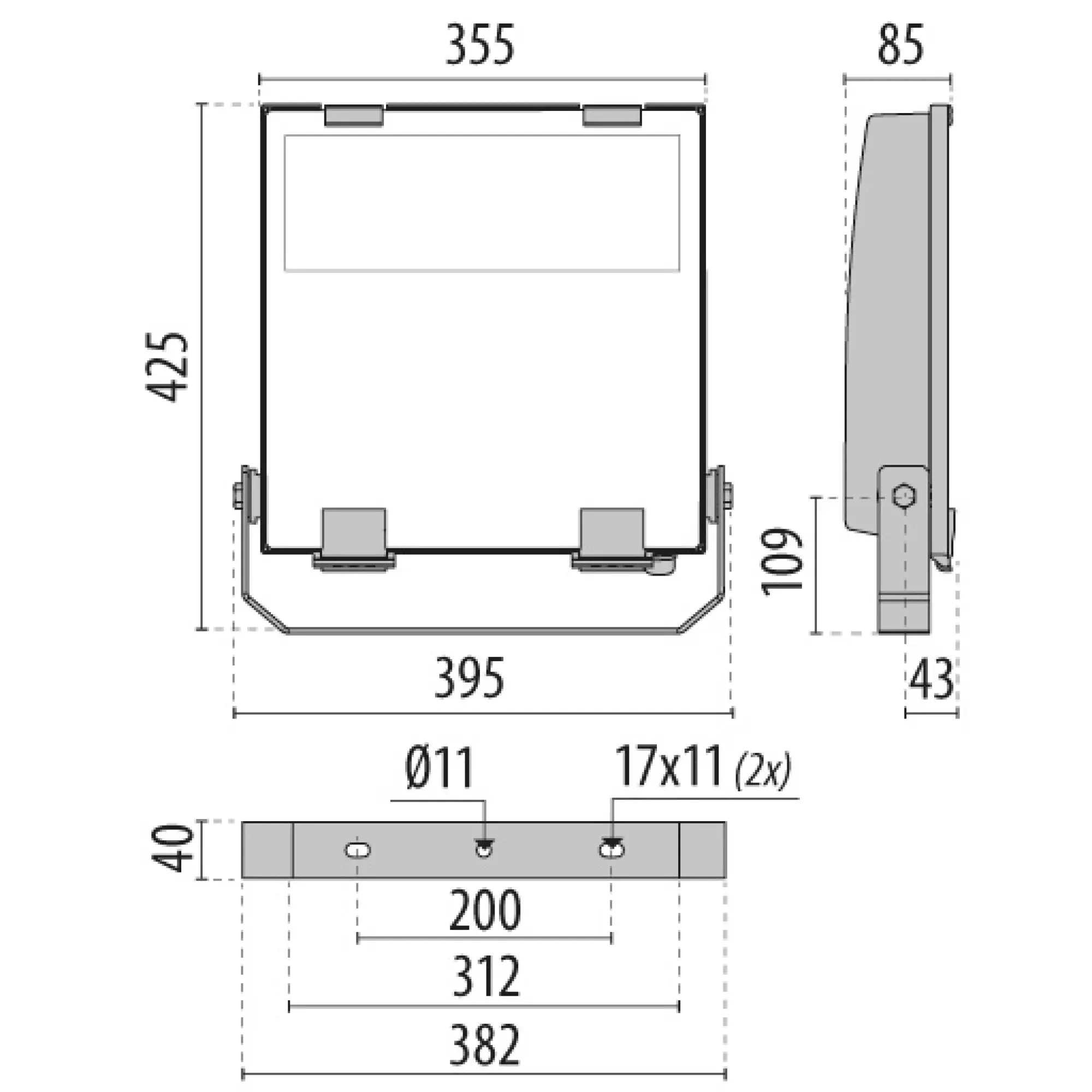

Height/depth 85 mm
Housing colour Grey
Housing material Aluminium
IFTTT support available No
Impact strength IK07
Lamp holder Other
Lamp type LED exchangeable
Length 355 mm
Light distributor Reflector
Light outlet Direct
Light sharing Asymmetric
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) 89.4 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 86.3 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) 81.2 %
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Luminous flux adjustable No
Luminous intensity 15697
Material cover Glass transparent
Max. number of luminaires per miniature circuit breaker B16 (MCB) 5
Max. number of luminaires per miniature circuit breaker C16 (MCB) 8
Max. system power 153 W
Nominal current 2800 mA
Nominal voltage 220 V
Number of poles 5
Operation by Bluetooth No
Photobiological safety according to EN 62471 RG1
Power factor 0.9
Protection class I
Rated ambient temperature according to IEC 62722-2-1 -40 °C
Rated life time L70/B50 at 25 °C 135000 h
Reflector Matt
Reflector colour Other
Suitable for built-in mounting No
Suitable for ceiling mounting No
Suitable for clamp-mounting No
Suitable for lamp power 153 W
Suitable for light-track mounting No
Suitable for low voltage cable system No
Suitable for number of light sources 2
Suitable for pedestal/floor mounting No
Suitable for surface mounting Yes
Suitable for suspended mounting No
Suitable for traverse mounting No
Suitable for wall mounting Yes
Suitable for workplace according to EN 12464-1 No
Surface brushed No
Surface protection Powder coating
Type of control gear LED operating device current-controlled
Type of wiring Ending
Unified Glare Ratio (UGR) 36
Voltage type AC
Width 425 mm
With control gear Yes
With light sensor No
With light source Yes
With movement sensor No
With presence indicator No
Dimmable Yes
