Luminaire for streets and places

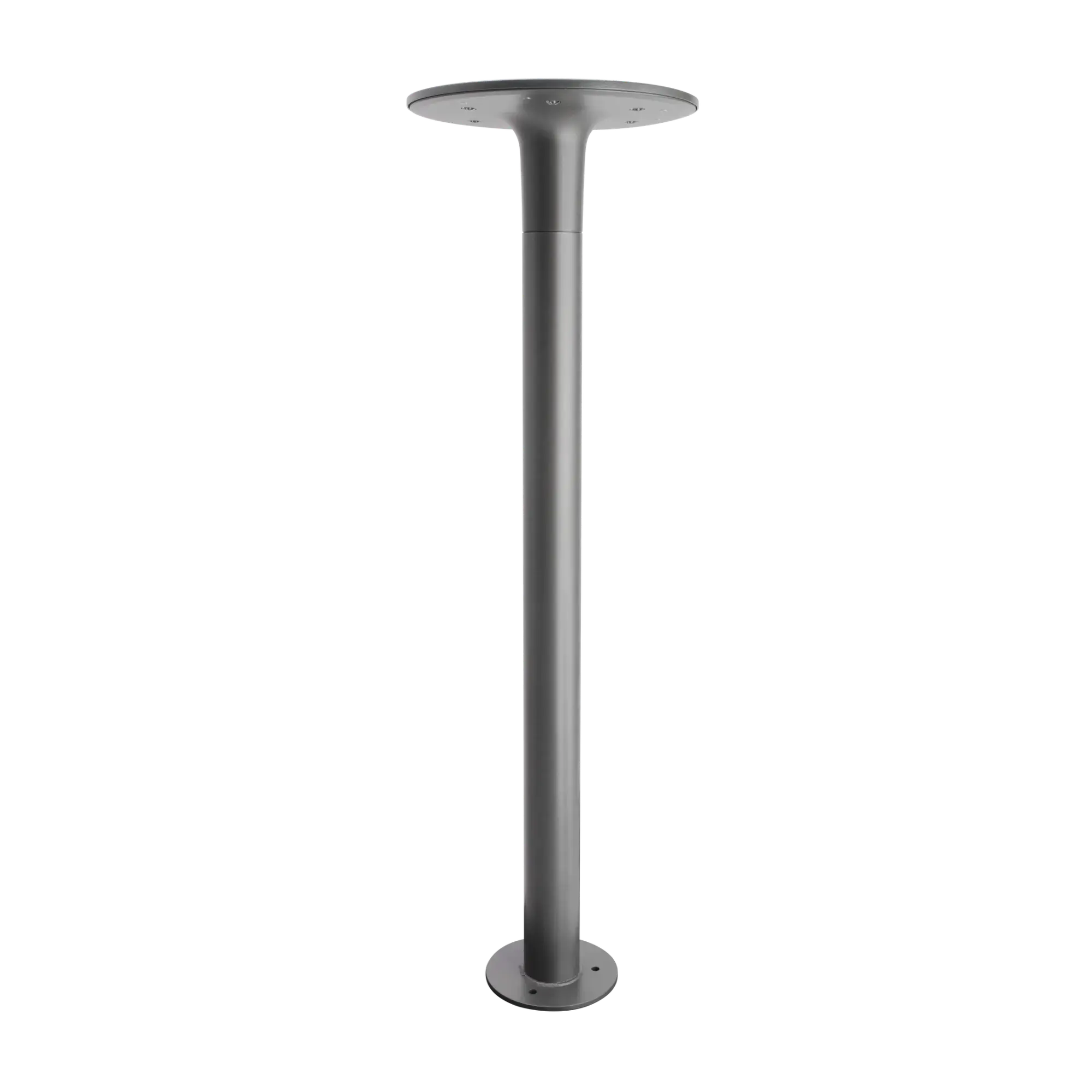

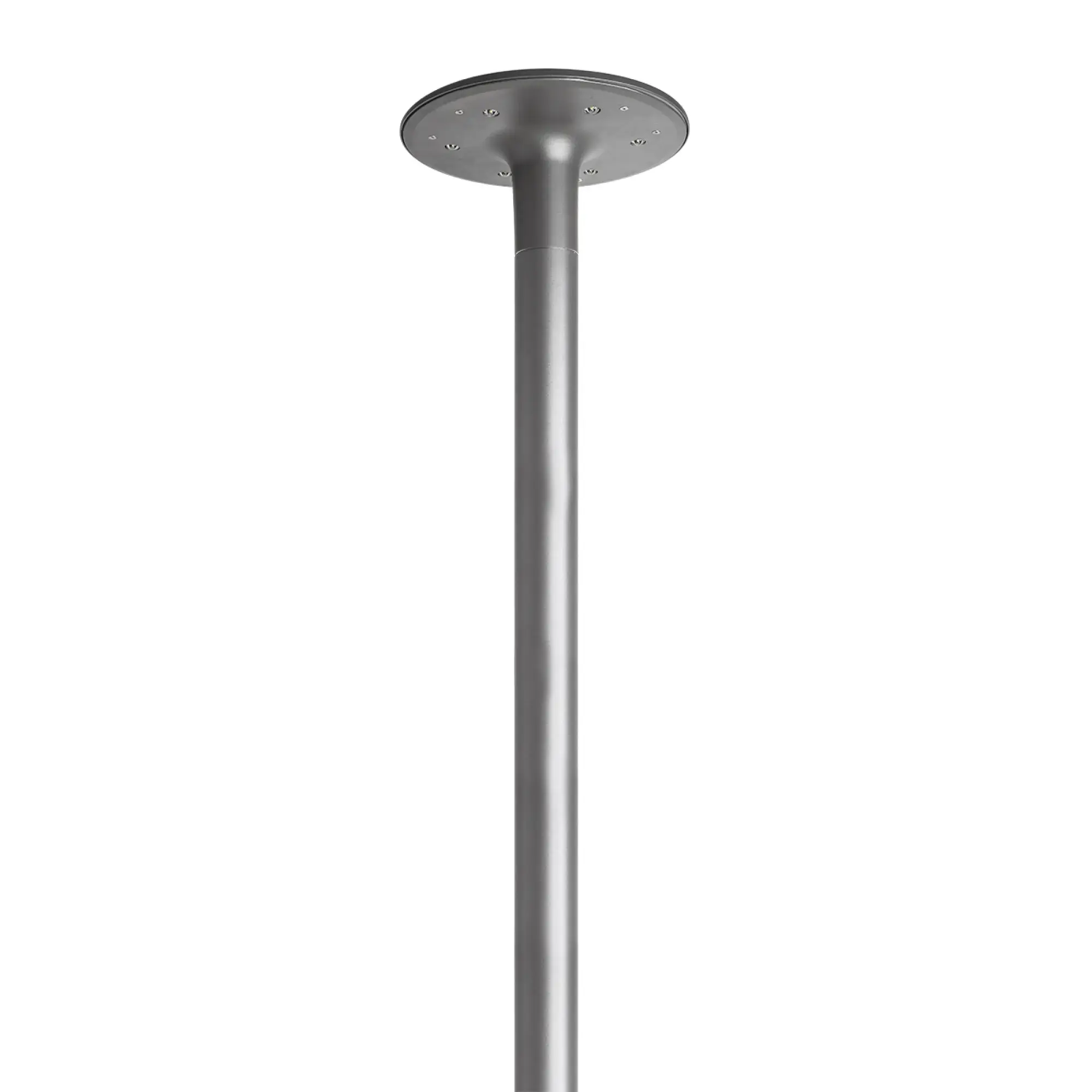

Performance iN Lighting 303494 LED-Mastleuchte 4000K 11W dimmbar 1-10V runde extrabreite Streuoptik 303494

Art. No.WSL5510007956 P/N303494 EAN8018367614992 BrandPerformance iN Lighting

Adjustable optics No

Built-in battery No

Colour consistency (McAdam ellipse) SDCM3

Colour of light White

Colour rendering index CRI 70-79

Colour temperature 4000 K

Connectable conductor cross section 1.5

Connection type Push-in clamp

€572.46 incl. VAT

Custom quote for orders of 10 units or more

Availability In stock

Delivery time 2–3 working days

Returns 14-day right of withdrawal for consumers

Warranty Manufacturer warranty depending on the product

Performance iN Lighting LED-Mastleuchte 4000K 11W dimmbar 1-10V runde extrabreite Streuoptik 303494

Performance iN Lighting 303494

EAN 8018367614992

Description

Leuchte zur Pollermontage für Außenbereiche, zur allgemeinen Beleuchtung, bestehend aus: Gehäuse aus Aluminiumdruckguss mit Polyesterpulverlackierung. Befestigungssatz für Mast mit D= 60-76 mm aus Aluminiumdruckguss mit Polyesterpulver beschichtet als Zubehör erhältlich. Altersbeständige Silikon-Dichtung. Stopfbuchse M25x1,5 für Kabel mit D= 9-14 mm. Externer Stromanschluss über wasserdichte Stecker-Buchsenverbindung QUICK inkl. Kabel. LED-Versionen werden inklusive 230/240 V 50/60 Hz Sicherheitstransformator geliefert. Ausführungen mit dimmbarem EVG, 1-10 V. Zu jeder LED gehört ein elektronisches Sicherheitsgerät (NUD), das diese bei Störungen überbrückt. Außenschrauben aus Edelstahl. SECURE LIGHT DISTRIBUTION-System, das eine einheitliche Verteilung des Lichts auch bei Mängeln einer LED garantiert. Polyester-Pulverbeschichtung, bestehend aus 13 unterschiedlichen Schichten, schützt vor UV-Strahlung. Schutzklasse II.

Documents & Downloads

Datasheet

Product Attributes

Technical data

P/N (Part Number)	303494
EAN	8018367614992
ETIM	EC000062
Weight	5.06 kg
Weight (Package)	7.29 kg

Designations

Aussenleuchten Außenbeleuchtung Außenleuchte Außenleuchten Beleuchtung Garten Gartenleuchten LED Außenleuchte LED-Leuchte Park- und Wegeleuchten Poller- und Gartenleuchte Pollerleuchte Stadt- und Parkleuchten Wegeleuchte

Adjustable optics No

Built-in battery No

Colour consistency (McAdam ellipse) SDCM3

Colour of light White

Colour rendering index CRI 70-79

Colour temperature 4000 K

Connectable conductor cross section 1.5

Connection type Push-in clamp

Constant light output (CLO) No

Degree of protection (IP) IP65

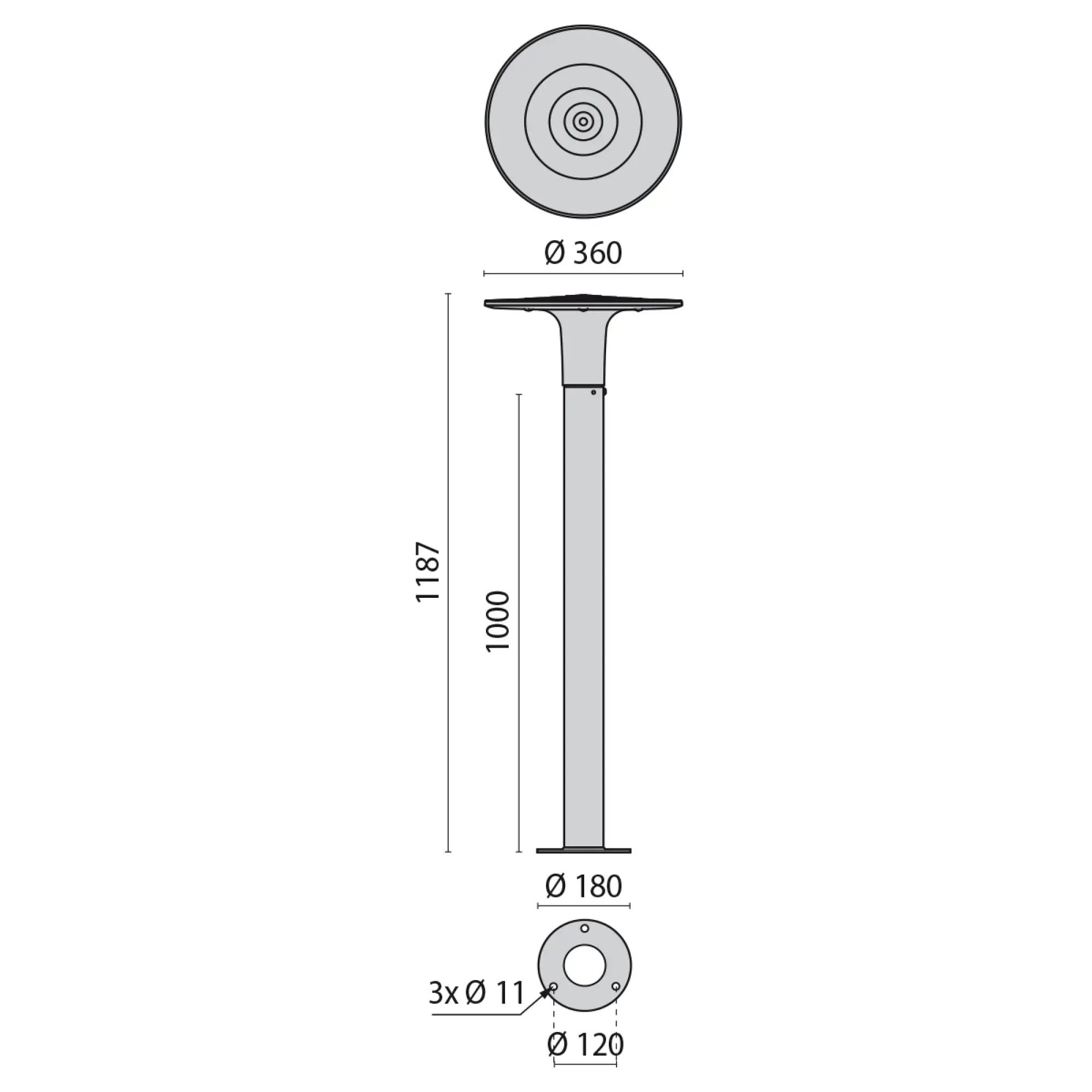

Diameter 360 mm

Dimming 0-10 V No

Dimming 1-10 V Yes

Dimming DALI No

Dimming DALI-2 No

Dimming DMX No

Dimming DSI No

Dimming LineSwitch No

Dimming RF No

Dimming Sine Wave Reduction No

Dimming Zigbee No

Dimming mains voltage modulation No

Dimming manufacturer's proprietary system No

Dimming phase cut-off No

Dimming phase cut-on No

Dimming programmable No

EF018708 No

EF018709 No

EF018710 No

EF018712 No

EF018714 867

EF018948 No

EF019111 Yes

Energy efficiency class of the light source according to EU regulation 2019/2015 E

Exchangeable control gear Yes

Height/depth 1187 mm

Housing colour Anthracite

Housing material Aluminium

Impact strength IK10

Lamp holder Other

Lamp type LED not exchangeable

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 92.2 %

Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) 84.8 %

Luminaire efficacy 102 lm/W

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No

Material cover Plastic, transparent

Max. number of luminaires per miniature circuit breaker B16 (MCB) 50

Max. number of luminaires per miniature circuit breaker C16 (MCB) 85

Max. system power 11 W

Mounting method Other

Nominal voltage 220 V

Number of poles 4

Operation by Bluetooth No

Protection class II

Rated ambient temperature according to IEC 62722-2-1 -25 °C

Remote control None

Suitable for lamp power 11 W

Suitable for number of light sources 1

Type of connection for sensor/communication module Other

Type of control gear Electronic ballast

Voltage type AC/DC

With connection cable No

With control gear Yes

With light regulation program control No

With light sensor No

With light source Yes

With movement sensor No

With presence indicator No

With radio control No

Dimmable Yes
