Luminaire bollard
Performance iN Lighting 306071 LED-Pollerleuchte 3000K 77W dimmbar 1-10V symmetrische extrabreite Streuoptik 306071
Art. No.WSL5510008614 P/N306071 EAN8021944118400 BrandPerformance iN Lighting
Beam angle Extreme wide beam >80°
Beam angle adjustable No
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 3000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
€1,211.68 incl. VAT
Availability In stock
Delivery time 2–3 working days
Returns 14-day right of withdrawal for consumers
Warranty Manufacturer warranty depending on the product
Product information

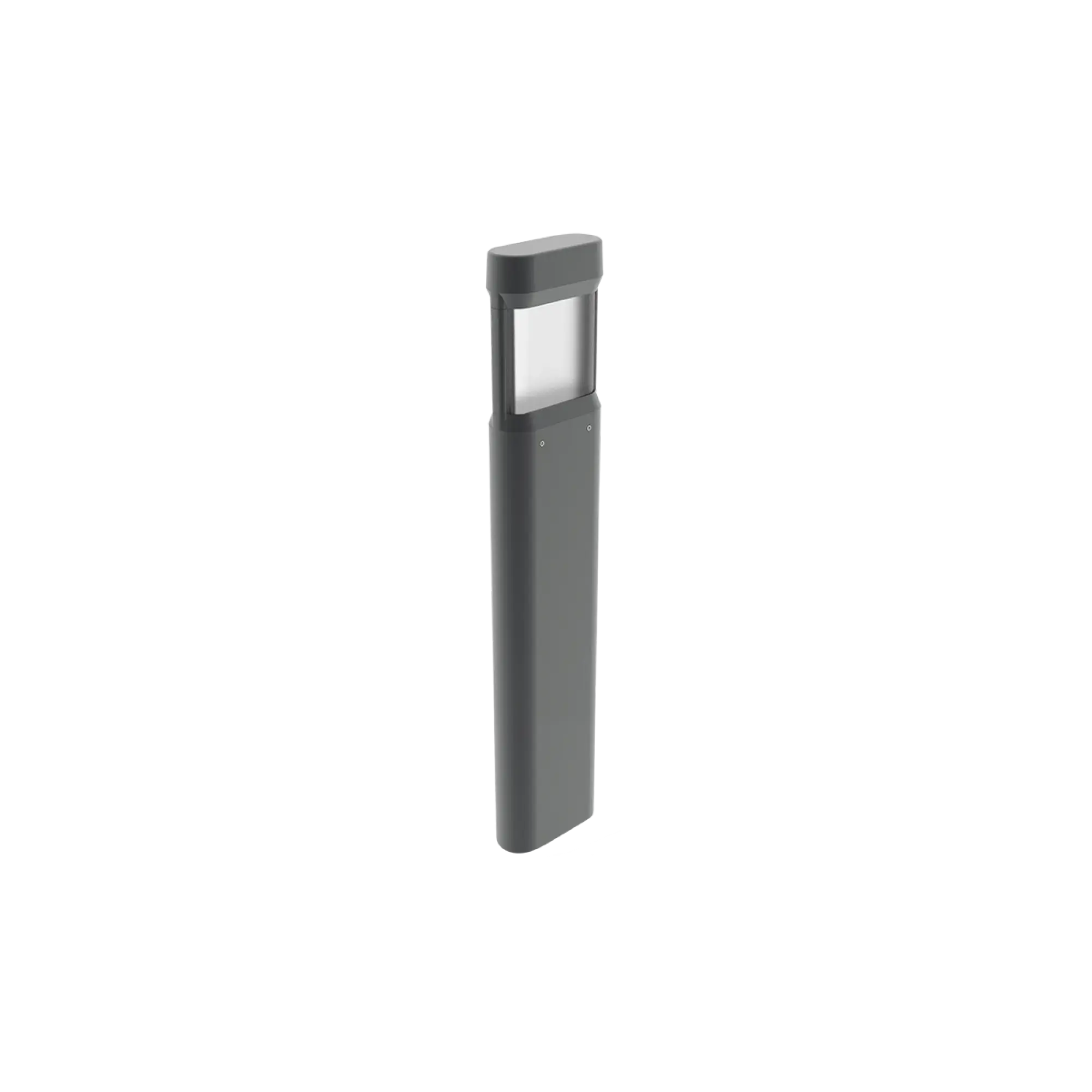

Performance iN Lighting LED-Pollerleuchte 3000K 77W dimmbar 1-10V symmetrische extrabreite Streuoptik 306071
Performance iN Lighting 306071
EAN 8021944118400
Description
Pollerleuchten-Serie für den Außenbereich, bestehend aus: Gehäuse aus Aluminium-Strangpressprofil, lackiert ISO 9227/12944 - ISO 9223 (C5). Die SOFT-Ausführung wird inklusive satiniertem, UV-beständigen Diffusor aus Polycarbonat geliefert. Diffusor aus extrahellem gehärtetem Flachglas, mit innen aufgebrachtem Siebdruck. Lampenraum aus lackiertem Aluminiumdruckguss. Reflektor aus metallisiertem Reinstaluminium, hochglänzend, oxidationsfrei. Altersbeständige Silikondichtung. Elektrischer Anschluss via Anschlussdose. Leuchte inklusive Konverter. Äußere Schrauben aus Edelstahl. Kabelfach aus lackiertem Aluminiumdruckguss. Inklusive Überspannungsschutz bis 10 kV (CM/DM). Montageflansch aus lackiertem Stahl. Dekorative Gegenflanschabdeckung für Befestigungssockel aus lackiertem Aluminiumdruckguss (als Zubehör erhältlich). Für die Installation ist ein Edelstahl-Gegenflansch, zur Verankerung in Beton, als Zubehör erhältlich. DALI Ausführungen auf Anfrage. Informationen zu anderen Farbtemperaturen und zum Farbwiedergabeindex erhalten Sie vom Werk.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 306071 |
|---|---|
| EAN | 8021944118400 |
| ETIM | EC000301 |
| Weight | 21.68 kg |
| Weight (Package) | 22.68 kg |
Designations
Aussenleuchten Außenbeleuchtung Außenleuchte Außenleuchten Beleuchtung Garten Gartenleuchten LED Außenleuchte LED-Leuchte Park- und Wegeleuchten Poller- und Gartenleuchte Pollerleuchte Stadt- und Parkleuchten Wegeleuchte
Beam angle Extreme wide beam >80°
Beam angle adjustable No
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 3000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Conductor cross section 2.5 mm²
Connectable conductor cross section 1.5
Connection type Screwed terminal
Constant light output (CLO) No
Degree of protection (IP) IP65
Degree of protection (NEMA) 4
Diameter 300 mm
EF018714 1996
EF019111 No
Energy efficiency class of the light source according to EU regulation 2019/2015 D
Exchangeable control gear Yes
Height/depth 97 mm
Housing colour Anthracite
Housing material Aluminium
Housing material quality Other
IFTTT support available No
Impact strength IK07
Lamp holder Other
Lamp type LED exchangeable
Length 238 mm
Light distributor Reflector
Light outlet Direct
Light sharing Symmetric
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 85 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) 65 %
Luminaire efficacy 26 lm/W
Luminous flux adjustable No
Material cover Glass transparent
Max. number of luminaires per miniature circuit breaker B16 (MCB) 24
Max. number of luminaires per miniature circuit breaker C16 (MCB) 40
Max. system power 77 W
Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C) No
Nominal current 1050 mA
Nominal voltage 220 V
Number of poles 5
Power factor 0.9
Protection class I
Rated life time L70/B50 at 25 °C 80000 h
Suitable for lamp power 77 W
Suitable for number of light sources 1
Surface protection Powder coating
Type of control gear LED operating device current-controlled
Type of luminaire Stele
Type of power supply Mains power supply
Type of wiring Suitable for through wiring
Voltage type AC
Width 1200 mm
With base plate Yes
With control gear Yes
With light sensor No
With light source Yes
With movement sensor No
