Downlight/spot/floodlight
Performance iN Lighting 3101743 LED-Stromschienenstrahler 3000K 68W DALI asymmetrische mittlere Optik 3101743
Art. No.WSL5510009154 P/N3101743 EAN8021944130174 BrandPerformance iN Lighting
Adjustability Rotatable
Beam angle Medium beam 21-40°
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 3000 K
€469.08 incl. VAT
Availability In stock
Delivery time 2–3 working days
Returns 14-day right of withdrawal for consumers
Warranty Manufacturer warranty depending on the product
Product information
Performance iN Lighting LED-Stromschienenstrahler 3000K 68W DALI asymmetrische mittlere Optik 3101743
Performance iN Lighting 3101743
EAN 8021944130174
Description
LED-Lichtschiene für den Innenbereich, bestehend aus: Gehäuse und Abdeckung aus lackiertem Aluminiumdruckguss mit Polyesterpulverbeschichtung, nach vorhergehender chemischer Umwandlung. Optik aus Technopolymer-Linsen mit erhöhter Lichtdurchlässigkeit. Symmetrische Optik (S/EW) und Optik mit doppelter Asymmetrie (2A/M). Lichtquelle besteht aus mehreren LED-Modulen. LED 3000 K CRI>80 und 4000 K CRI>80 Ausführungen sind serienmäßig lieferbar. Weitere Farbtemperaturen und Farbtöne auf Anfrage. Inkl. 3-Phasen-Universaladapter. Leuchte kompatibel mit Stromschienen und Installationszubehör der Serie OTR TRACKS RAILS. Leuchte ist geeignet für die Installation auf elektrischen Schienenmodulen vom Typ EUROSTANDARD PLUS. Lieferbar sind Versionen mit ON-OFF-Driver und dimmbar DALI.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 3101743 |
|---|---|
| EAN | 8021944130174 |
| ETIM | EC001744 |
| Weight | 3.55 kg |
| Weight (Package) | 3.88 kg |
Designations
Innenleuchten Lichtschienensystem Stromschienenstrahler
Adjustability Rotatable
Beam angle Medium beam 21-40°
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 3000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Compatible with Casambi No
Compatible with Google Assistant No
Constant light output (CLO) Yes
Covering of the luminaire with thermally insulating material possible No
Degree of protection (IP) Other
Degree of protection (IP), rear side IP20
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI Yes
Dimming DALI-2 Yes
Dimming DMX No
Dimming DSI No
Dimming LineSwitch No
Dimming RF No
Dimming Sine Wave Reduction No
Dimming Touch and Dim No
Dimming Zigbee No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off No
Dimming phase cut-on No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming with push-button No
EF018713 133.2
EF018714 9058
EF018918 None
EF019111 Yes
EF019128 20
EFUK0027 No
EFUK0028 No
EFUK0029 No
Energy efficiency class of the light source according to EU regulation 2019/2015 D
Exchangeable control gear Yes
Filament test according to IEC 60695-2-11 650 °C - 30 s

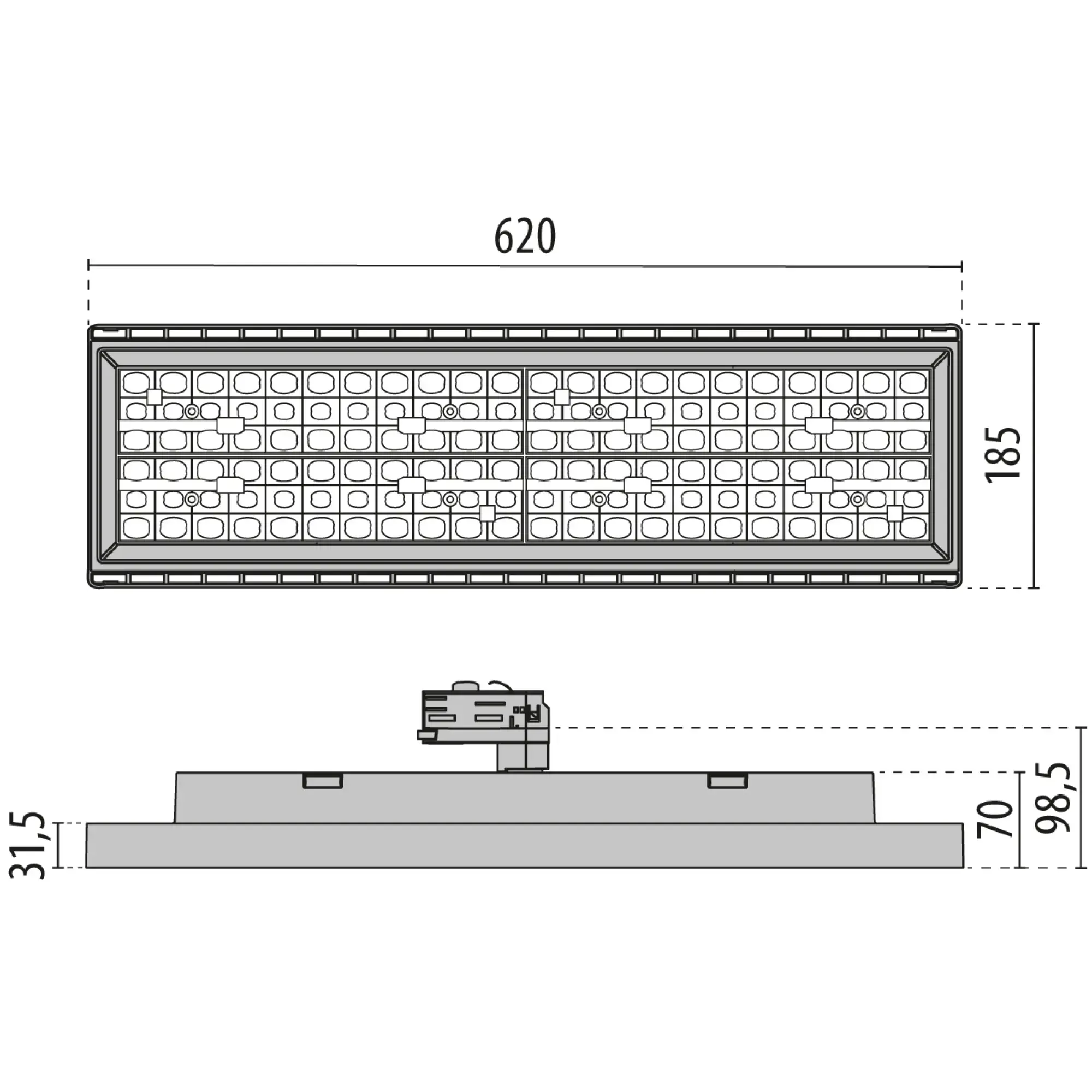

Height/depth 70 mm
Housing colour White
Housing material Aluminium
IFTTT support available No
Impact strength IK04
Lamp holder None
Lamp type LED not exchangeable
Length 620 mm
Light distributor Diffuser lens/optic/panel
Light outlet Direct
Light sharing Asymmetric
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) 91.5 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 87.5 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) 76.4 %
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Luminous flux adjustable Continuously variable
Material cover Other
Max. number of luminaires per miniature circuit breaker B16 (MCB) 24
Max. number of luminaires per miniature circuit breaker C16 (MCB) 40
Max. system power 68 W
Nominal current 500 mA
Nominal voltage 220 V
Operation by Bluetooth No
Power factor 0.9
Protection class I
Rated ambient temperature according to IEC 62722-2-1 -40 °C
Reflector None
Reflector colour Silver
Suitable for built-in mounting No
Suitable for ceiling mounting No
Suitable for clamp-mounting No
Suitable for lamp power 65 W
Suitable for light-track mounting Yes
Suitable for low voltage cable system No
Suitable for number of light sources 1
Suitable for pedestal/floor mounting No
Suitable for surface mounting No
Suitable for suspended mounting No
Suitable for traverse mounting No
Suitable for wall mounting No
Suitable for workplace according to EN 12464-1 No
Surface brushed No
Type of control gear Electronic ballast
Type of wiring Ending
Unified Glare Ratio (UGR) 27.8
Voltage type AC
Width 185 mm
With control gear Yes
With light sensor No
With light source Yes
With movement sensor No
With presence indicator No
Dimmable Yes
