Luminaire bollard
Performance iN Lighting 3106842 LED-Pollerleuchte 4000K 5W statisch asymmetrische mittlere Optik 3106842
Art. No.WSL5510009888 P/N3106842 EAN8018367694734 BrandPerformance iN Lighting
Beam angle Other
Beam angle adjustable No
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 4000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
€255.94 incl. VAT
Availability In stock
Delivery time 2–3 working days
Returns 14-day right of withdrawal for consumers
Warranty Manufacturer warranty depending on the product
Product information

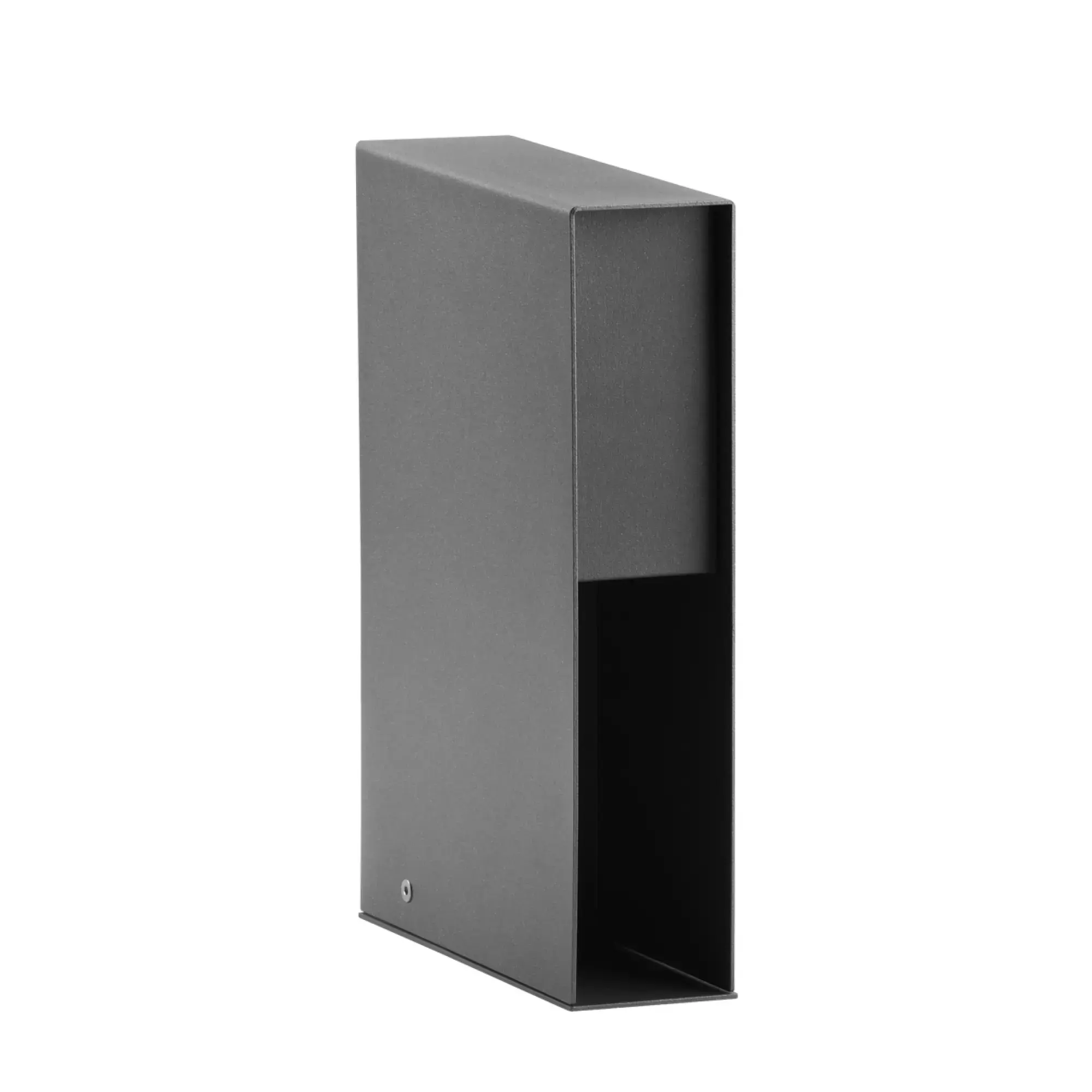

Performance iN Lighting LED-Pollerleuchte 4000K 5W statisch asymmetrische mittlere Optik 3106842
Performance iN Lighting 3106842
EAN 8018367694734
Description
LED Gartenleuchten für Pollermontage, bestehend aus: Gehäuse aus Aluminiumdruckguss, pulverbeschichtet. Diffusor aus extrahellem gehärtetem Flachglas, mit innen aufgebrachtem Siebdruck. LED Module 220-240V 50/60 Hz geschützt gegen Überspannung bis 500 V. Aluminiumreflektor. Silikondichtung. Poller aus lackiertem, Aluminiumstrangguss. Struktur aus lackiertem Edelstahl für die Versionen Orion Post 260. Bodenplatte inklusive. Externer Stromanschluss über wasserdichte Stecker-Buchsenverbindung QUICK inkl. Kabel.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 3106842 |
|---|---|
| EAN | 8018367694734 |
| ETIM | EC000301 |
| Weight | 2.29 kg |
| Weight (Package) | 2.49 kg |
Designations
Aussenleuchten Außenbeleuchtung Außenleuchte Außenleuchten Beleuchtung Garten Gartenleuchten LED Außenleuchte LED-Leuchte Poller- und Gartenleuchte Pollerleuchte Pollerleuchten Wegeleuchte
Beam angle Other
Beam angle adjustable No
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 4000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Conductor cross section 2.5 mm²
Connectable conductor cross section 1
Connection type Push-in clamp
Constant light output (CLO) No
Degree of protection (IP) IP65
EF018714 101.93
EF019111 No
Energy efficiency class of the light source according to EU regulation 2019/2015 F
Exchangeable control gear No

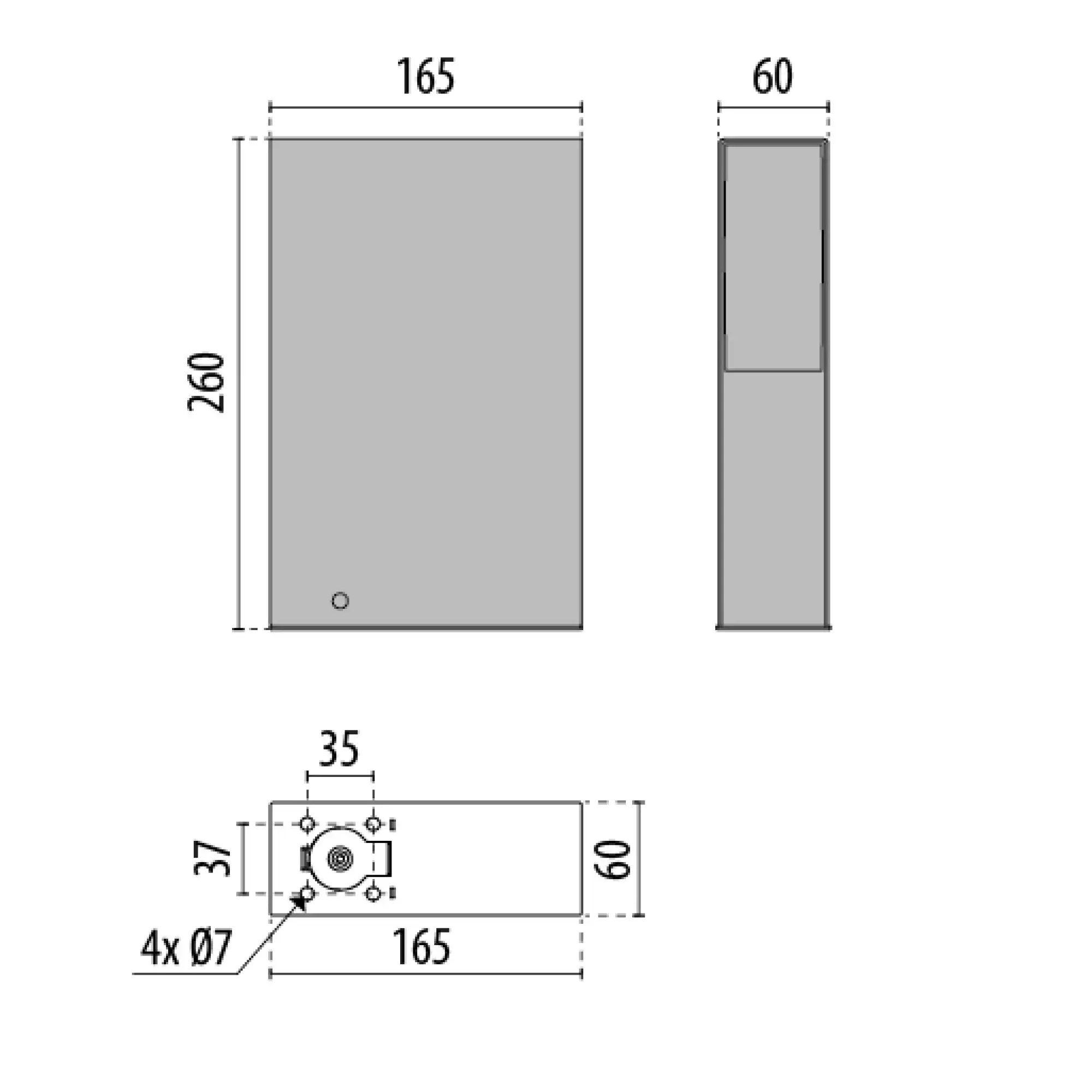

Height/depth 260 mm
Housing colour Anthracite
Housing material Aluminium
Housing material quality Other
IFTTT support available No
Impact strength IK08
Lamp holder None
Lamp type LED not exchangeable
Length 165 mm
Light distributor Diffuser lens/optic/panel
Light outlet Direct
Light sharing Asymmetric
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 48.8 %
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) 23.2 %
Luminous flux adjustable No
Material cover Glass opal
Max. number of luminaires per miniature circuit breaker B16 (MCB) 116
Max. number of luminaires per miniature circuit breaker C16 (MCB) 185
Max. system power 5 W
Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C) No
Nominal current 16 mA
Nominal voltage 220 V
Number of poles 3
Protection class I
Suitable for number of light sources 1
Surface protection Powder coating
Type of control gear LED operating device current-controlled
Type of luminaire Bollard luminaire
Type of power supply Mains power supply
Type of wiring Ending
Voltage type AC
Width 60 mm
With base plate Yes
With control gear Yes
With light sensor No
With light source Yes
With movement sensor No
