Pendant luminaire
Performance iN Lighting 3112570 LED-Pendelleuchte 3000K 51W DALI schwarzes Raster d+i 3112570
Art. No.WSL5510010977 P/N3112570 EAN4046075107264 BrandPerformance iN Lighting
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 90-100
Colour temperature 3000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
€708.53 incl. VAT
Availability In stock
Delivery time 2–3 working days
Returns 14-day right of withdrawal for consumers
Warranty Manufacturer warranty depending on the product
Product information
Performance iN Lighting LED-Pendelleuchte 3000K 51W DALI schwarzes Raster d+i 3112570
Performance iN Lighting 3112570
EAN 4046075107264
Description
Pendelleuchte SL764+ mit Hochleistungs-LED. Leuchtenleistung 51W. Elegante Profilleuchte in zeitlos zurückhaltendem Design. High-End-Beleuchtungslösung im Office-Bereich. Leuchtengehäuse aus Aluminium-Strangpressprofil. Perfekte Passung der Lichtoptik durch Dehnungsausgleichsnischen in den Kopfstücken. Beste Entblendung bei hoher Effizienz durch PC-Entblendungsraster in schwarz / matt. Direkt- indirekt strahlend. Blendfreie Reflektortechnik erzeugt fokussierende Beleuchtungszonen. Höchste Lichtqualität durch Farbwiedergabe (Ra) > 90. Indirektanteil erzeugt visuelle Öffnung des Raumes durch großzügige Deckenaufhellung mit kontinuierlichem Leuchtdichteverlauf. BAP-geeignet nach DIN EN 12464-1.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 3112570 |
|---|---|
| EAN | 4046075107264 |
| ETIM | EC001743 |
| Weight | 5.97 kg |
| Weight (Package) | 7.99 kg |
Designations
Bürobeleuchtung Büroleuchten Innenleuchten Pendelleuchten
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 90-100
Colour temperature 3000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Compatible with Casambi No
Compatible with Google Assistant No
Conductor cross section 1.5 mm²
Connectable conductor cross section 1
Connection type Push-in clamp
Constant light output (CLO) No
Degree of protection (IP) IP30
Degree of protection (NEMA) 1
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI Yes
Dimming DALI-2 No
Dimming DMX No
Dimming DSI No
Dimming RF No
Dimming Touch and Dim Yes
Dimming Zigbee No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off No
Dimming phase cut-on No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming with push-button Yes
Direct-/indirect proportion separately controllable No
EF018713 117
EF018714 5960
EF018918 None
EF018921 None
EF019111 Yes
Energy efficiency class of the light source according to EU regulation 2019/2015 D
Exchangeable control gear Yes
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) 1 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) 1.2 %
Filament test according to IEC 60695-2-11 650 °C - 30 s
Flickering value Pst LM 0.7

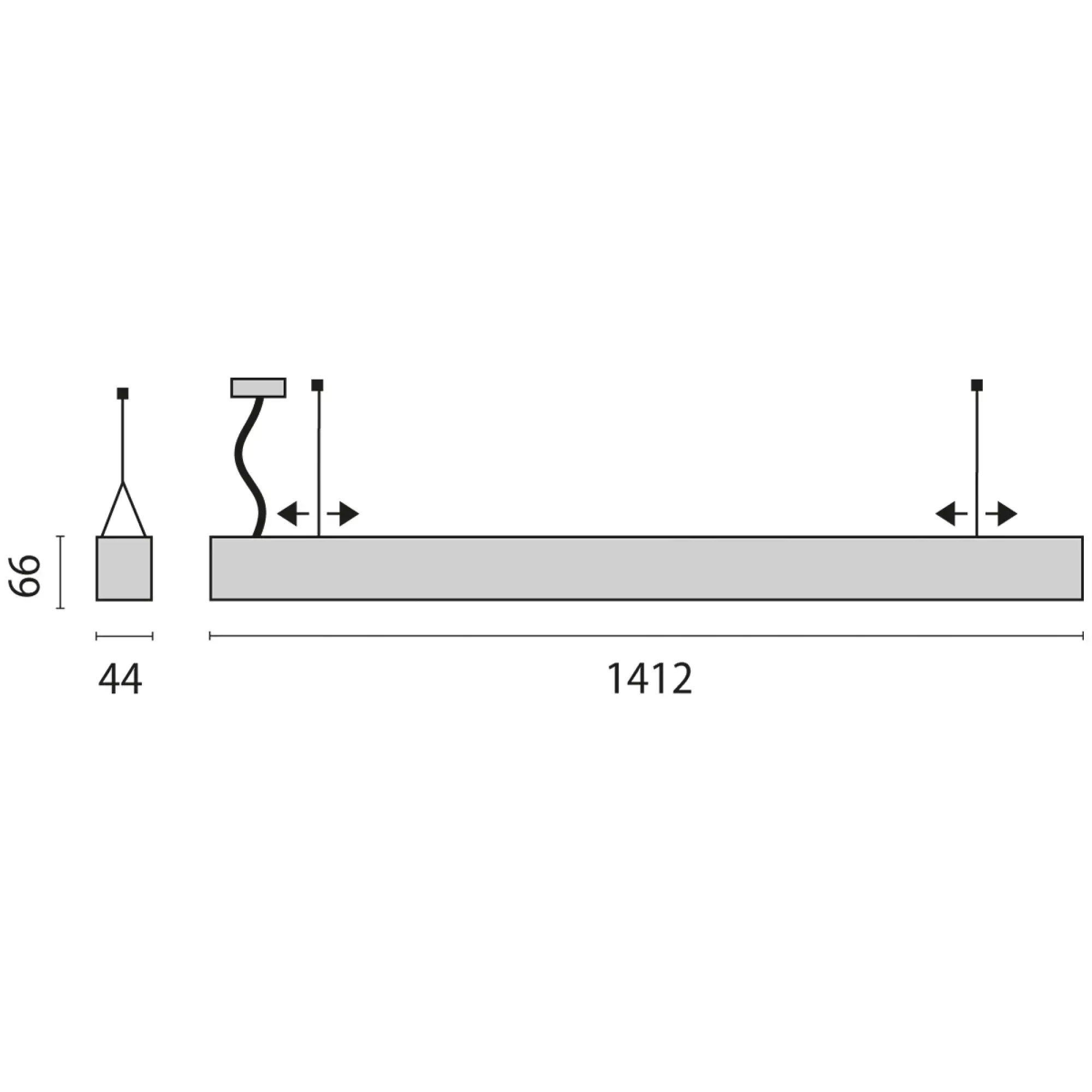

Height/depth 66 mm
Housing colour Black
Housing material Aluminium
IFTTT support available No
Impact strength IK05
Lamp holder None
Lamp type LED exchangeable
Length 1412 mm
Light distributor Reflector
Light outlet Direct/indirect
Light sharing Symmetric
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 70 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) 55 %
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Luminous flux adjustable No
Material cover Plastic, structured
Max. number of luminaires per miniature circuit breaker B16 (MCB) 21
Max. number of luminaires per miniature circuit breaker C16 (MCB) 35
Max. system power 51 W
Nominal current 213 mA
Nominal voltage 220 V
Number of poles 5
Operation by Bluetooth No
Pendant length 150 mm
Power factor 0.9
Protection class I
Rated life time L70/B50 at 25 °C 99800 h
Reflector Matt
Stroboscope effect value SVM 0.4
Suitable for emergency lighting No
Suitable for lamp power 45 W
Suitable for light line configuration Yes
Suitable for number of light sources 1
Suitable for workplace according to EN 12464-1 Yes
Type of control gear Electronic ballast
Type of grid Matt
Type of wiring Suitable for through wiring
Unified Glare Ratio (UGR) 16
Voltage type AC/DC
Width 44 mm
With control gear Yes
With light sensor No
With light source Yes
With movement sensor No
With presence indicator No
With suspension Yes
Dimmable Yes
