Luminaire for streets and places

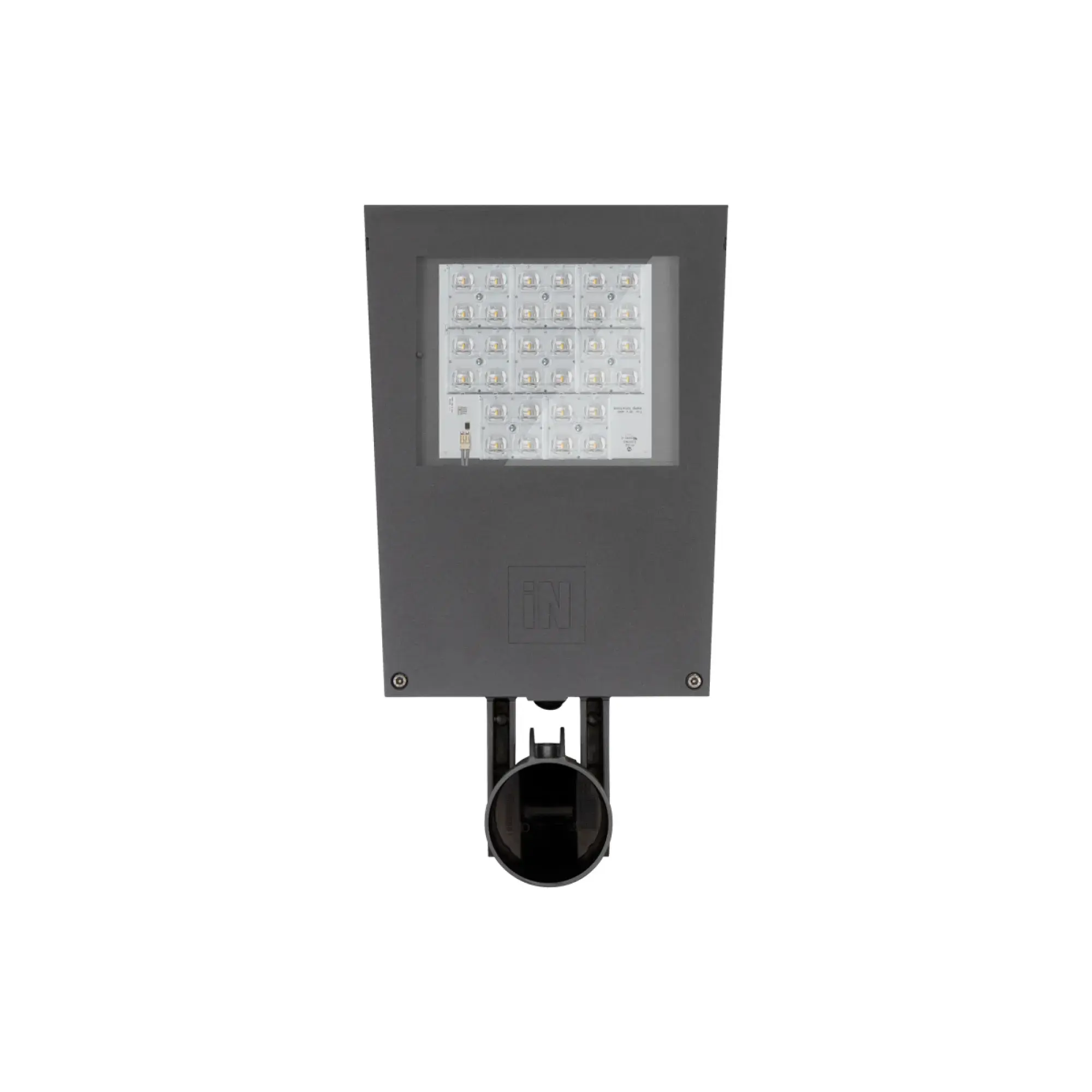

Performance iN Lighting 3112857 LED-Strassenleuchte 4000K 58W D4i ZHAGA Straßenbeleuchtungsoptik 3112857
Art. No.WSL5510011020 P/N3112857 EAN8018367713534 BrandPerformance iN Lighting
Adjustable optics No
Built-in battery No
Cable length 0.9 m
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour rendering index CRI 70-79
Colour temperature 4000 K
Conductor cross section 1.5 mm²
€672.79 incl. VAT
Availability In stock
Delivery time 2–3 working days
Returns 14-day right of withdrawal for consumers
Warranty Manufacturer warranty depending on the product
Product information
Performance iN Lighting LED-Strassenleuchte 4000K 58W D4i ZHAGA Straßenbeleuchtungsoptik 3112857
Performance iN Lighting 3112857
EAN 8018367713534
Description
LED Straßenleuchten, bestehend aus: Mit Polymerpulverlack körnig grau lackiertes Aluminiumdruckgussgehäuse nach vorheriger chemischer Oberflächenbehandlung ISO 9227/12944 - ISO 9223 (C5). Verschlussring aus lackiertem Aluminiumdruckguss mit Polyesterpulverbeschichtung, nach vorhergehender chemischer Umwandlung, der unverlierbar durch ein Gelenk mit dem Gehäuse verbunden ist. Mastbefestigung aus lackiertem Aluminiumdruckguss, geeignet für Masten Ø 60. 76 mm. Optik aus Technopolymer-Linsen mit erhöhter Lichtdurchlässigkeit. „SECURE LIGHT DISTRIBUTION“-System, das eine einheitliche Verteilung des Lichts auch bei Fehlfunktion einer LED garantiert. Hochelastische, verschleißfeste Silikondichtung. Diffusor aus extra klarem, gehärteten Sicherheits-Flachglas. Leuchte inklusive Konverter. Inklusive zusätzlicher Überspannungsschutz bis 10 kV (CM/DM). Äußere Schrauben aus Edelstahl. Leuchte mit 1-Meter-Kabel H07RN-F 2x1,5 mm². Erfüllt die Lichtverschmutzungsnormen UNI 10819. Die ZHAGA-Versionen sind ausgerüstet mit ZHAGA SOCKET im oberen Teil der Leuchte (UP-Position) und D4i-Treiber. Sie sind für die Aufnahme von „Radio Frequency Node“-Lösungen, Dämmerungssensoren und anderen Arten von kompatiblen Sensoren ausgelegt. Auf Anfrage ist die Lieferung von Leuchten mit ZHAGA SOCKET im unteren Teil der Leuchte (Position DOWN) oder gemischt (Position UP + DOWN) zum Anschluss von Präsenz- und/oder Bewegungsmeldern oder kombinierten Lösungen möglich. Informationen zu anderen Farbtemperaturen und zum Farbwiedergabeindex erhalten Sie vom Werk.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 3112857 |
|---|---|
| EAN | 8018367713534 |
| ETIM | EC000062 |
| Weight | 6.6 kg |
| Weight (Package) | 7.1 kg |
Designations
Aussenleuchten Außenbeleuchtung Außenleuchten LED Außenleuchte Mastleuchte Parkplatzbeleuchtung Straßenleuchten
Adjustable optics No
Built-in battery No
Cable length 0.9 m
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour rendering index CRI 70-79
Colour temperature 4000 K
Conductor cross section 1.5 mm²
Connectable conductor cross section 1.5
Connection type Other
Constant light output (CLO) No
Degree of protection (IP) IP66
Degree of protection (NEMA) 4
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DALI-2 No
Dimming DMX No
Dimming DSI No
Dimming LineSwitch No
Dimming RF No
Dimming Sine Wave Reduction No
Dimming Zigbee No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off No
Dimming phase cut-on No
Dimming programmable No
EF018708 Yes
EF018709 No
EF018710 No
EF018712 No
EF018714 9010
EF018948 No
EF019111 Yes
Energy efficiency class of the light source according to EU regulation 2019/2015 D
Exchangeable control gear Yes
Height/depth 193 mm
Housing colour Anthracite
Housing material Aluminium
Impact strength IK08
Lamp holder None
Lamp type LED not exchangeable
Length 506 mm
Light distributor Focal lens
Luminaire efficacy 142 lm/W
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Material cover Glass transparent
Max. number of luminaires per miniature circuit breaker B16 (MCB) 17
Max. number of luminaires per miniature circuit breaker C16 (MCB) 28
Max. system power 58 W
Mounting method Post top/side entry
Nominal voltage 220 V
Number of poles 2
Operation by Bluetooth No
Protection class II
Rated ambient temperature according to IEC 62722-2-1 -40 °C
Remote control None
Suitable for lamp power 58 W
Suitable for number of light sources 1
Suitable for spigot size 60 mm
Surface protection Powder coating
Type of connection for sensor/communication module Single Zhaga book 18
Type of control gear LED operating device current-controlled
Type of wiring Ending
Voltage type AC
Width 280 mm
With connection cable Yes
With control gear Yes
With light regulation program control No
With light sensor No
With light source Yes
With movement sensor No
With presence indicator No
With radio control No
Dimmable Yes
