Luminaire for streets and places

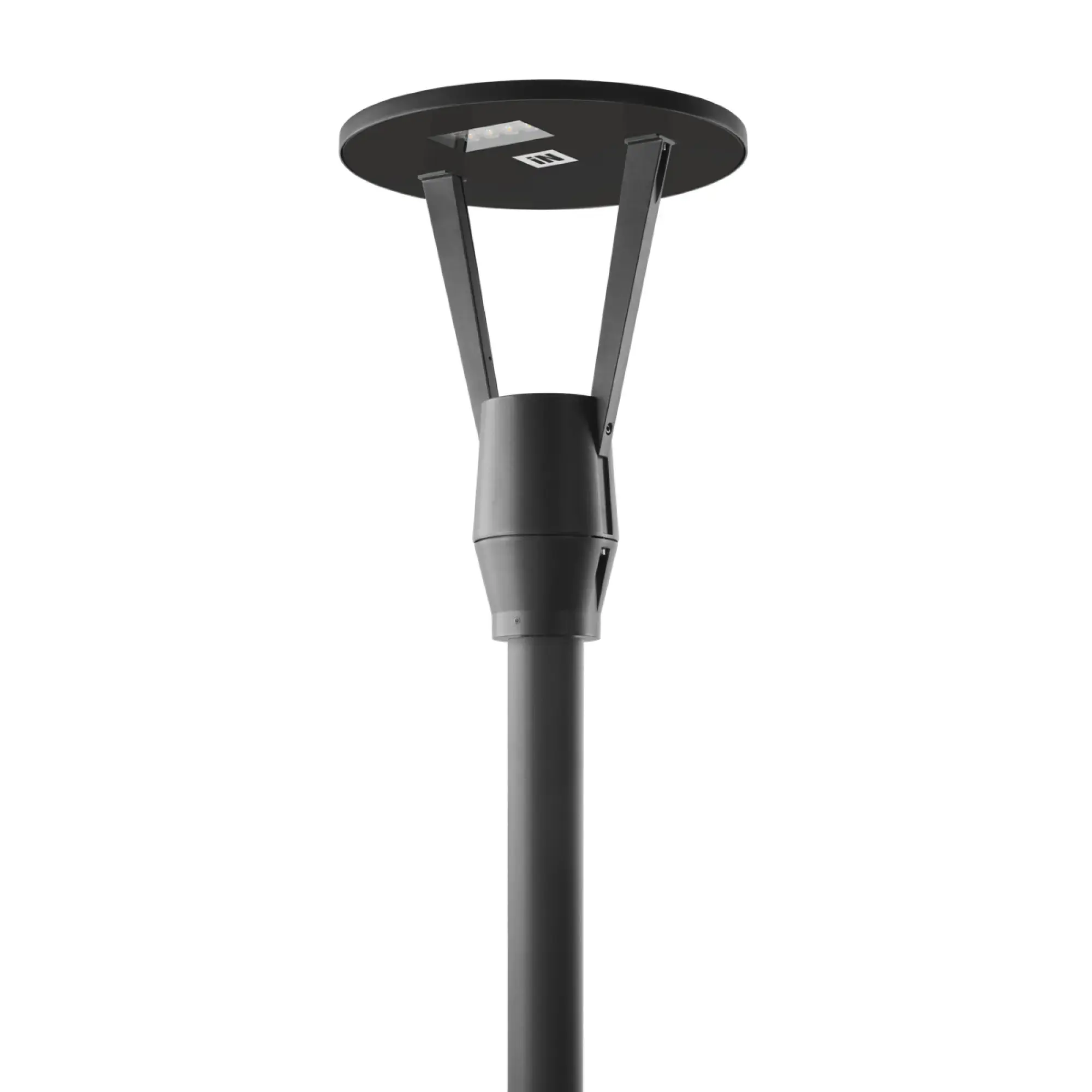

Performance iN Lighting 3116027 LED-Mastleuchte 3000K 27W D4i ZHAGA Straßenbeleuchtungsoptik 3116027

Art. No.WSL5510011745 P/N3116027 EAN8018367723892 BrandPerformance iN Lighting

Adjustable optics No

Built-in battery No

Colour consistency (McAdam ellipse) SDCM3

Colour of light White

Colour rendering index CRI 80-89

Colour temperature 3000 K

Conductor cross section 2.5 mm²

Connectable conductor cross section 1.5

€645.60 incl. VAT

Custom quote for orders of 10 units or more

Availability In stock

Delivery time 2–3 working days

Returns 14-day right of withdrawal for consumers

Warranty Manufacturer warranty depending on the product

Performance iN Lighting LED-Mastleuchte 3000K 27W D4i ZHAGA Straßenbeleuchtungsoptik 3116027

Performance iN Lighting 3116027

EAN 8018367723892

Description

Mastleuchte für den Außenbereich, bestehend aus: Mit Polymerpulverlack körnig grau lackiertes Aluminiumdruckgussgehäuse nach vorheriger chemischer Oberflächenbehandlung ISO 9227/12944 - ISO 9223 (C5). Mastbefestigung aus lackiertem Aluminiumdruckguss, geeignet für Masten Ø 60. 76 mm. Diffusor aus extra klarem, gehärteten Sicherheits-Flachglas. Hochelastische, verschleißfeste Silikondichtung. Elektrischer Anschluss mit einem externen IP66-Schnellkupplungsstecker, der den Anschluss an das Stromnetz ermöglicht, ohne die Leuchte zu öffnen; hergestellt aus PA66 mit Kontakten aus versilbertem Messing, für Kabel Ø 9 - Ø 12 mm. Erfüllt die Lichtverschmutzungsnormen UNI 10819. Äußere Schrauben aus Edelstahl. Inklusive zusätzlicher Überspannungsschutz bis 10 kV (CM/DM). Die ZHAGA-Versionen sind ausgerüstet mit ZHAGA SOCKET im oberen Teil der Leuchte (UP-Position) und D4i-Treiber. Sie sind für die Aufnahme von „Radio Frequency Node“-Lösungen, Dämmerungssensoren und anderen Arten von kompatiblen Sensoren ausgelegt. Informationen zu anderen Farbtemperaturen und zum Farbwiedergabeindex erhalten Sie vom Werk.

Documents & Downloads

Datasheet

Product Attributes

Technical data

P/N (Part Number)	3116027
EAN	8018367723892
ETIM	EC000062
Weight	6.9 kg
Weight (Package)	8.6 kg

Designations

Aussenleuchten Außenbeleuchtung Außenleuchte Außenleuchten LED Außenleuchte LED-Leuchte Mastleuchte Park- und Wegeleuchten Parkplatzbeleuchtung Poller- und Gartenleuchte Pollerleuchte Stadt- und Parkleuchten Wegeleuchte

Adjustable optics No

Built-in battery No

Colour consistency (McAdam ellipse) SDCM3

Colour of light White

Colour rendering index CRI 80-89

Colour temperature 3000 K

Conductor cross section 2.5 mm²

Connectable conductor cross section 1.5

Connection type Push-in clamp

Constant light output (CLO) No

Degree of protection (IP) IP66

Degree of protection (NEMA) 4

Diameter 450 mm

Dimming 0-10 V No

Dimming 1-10 V No

Dimming DALI No

Dimming DALI-2 No

Dimming DMX No

Dimming DSI No

Dimming LineSwitch No

Dimming RF No

Dimming Sine Wave Reduction No

Dimming Zigbee No

Dimming mains voltage modulation No

Dimming manufacturer's proprietary system No

Dimming phase cut-off No

Dimming phase cut-on No

Dimming programmable No

EF018708 Yes

EF018709 No

EF018710 No

EF018712 No

EF018714 2945

EF018948 No

EF019111 Yes

Energy efficiency class of the light source according to EU regulation 2019/2015 E

Exchangeable control gear Yes

Height/depth 598 mm

Housing colour Anthracite

Housing material Aluminium

Impact strength IK08

Lamp holder None

Lamp type LED not exchangeable

Light distributor Focal lens

Luminaire efficacy 109 lm/W

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 Yes

Material cover Other

Max. number of luminaires per miniature circuit breaker B16 (MCB) 12

Max. number of luminaires per miniature circuit breaker C16 (MCB) 22

Max. system power 27 W

Mounting method Post top

Nominal voltage 220 V

Number of poles 2

Operation by Bluetooth No

Protection class II

Rated ambient temperature according to IEC 62722-2-1 -40 °C

Remote control Other

Suitable for lamp power 27 W

Suitable for number of light sources 1

Suitable for spigot size 60 mm

Surface protection Powder coating

Type of connection for sensor/communication module Single Zhaga book 18

Type of control gear LED operating device current-controlled

Type of wiring Ending

Voltage type AC

With connection cable No

With control gear Yes

With light regulation program control No

With light sensor No

With light source Yes

With movement sensor No

With presence indicator No

With radio control No

Dimmable Yes
