Luminaire for streets and places

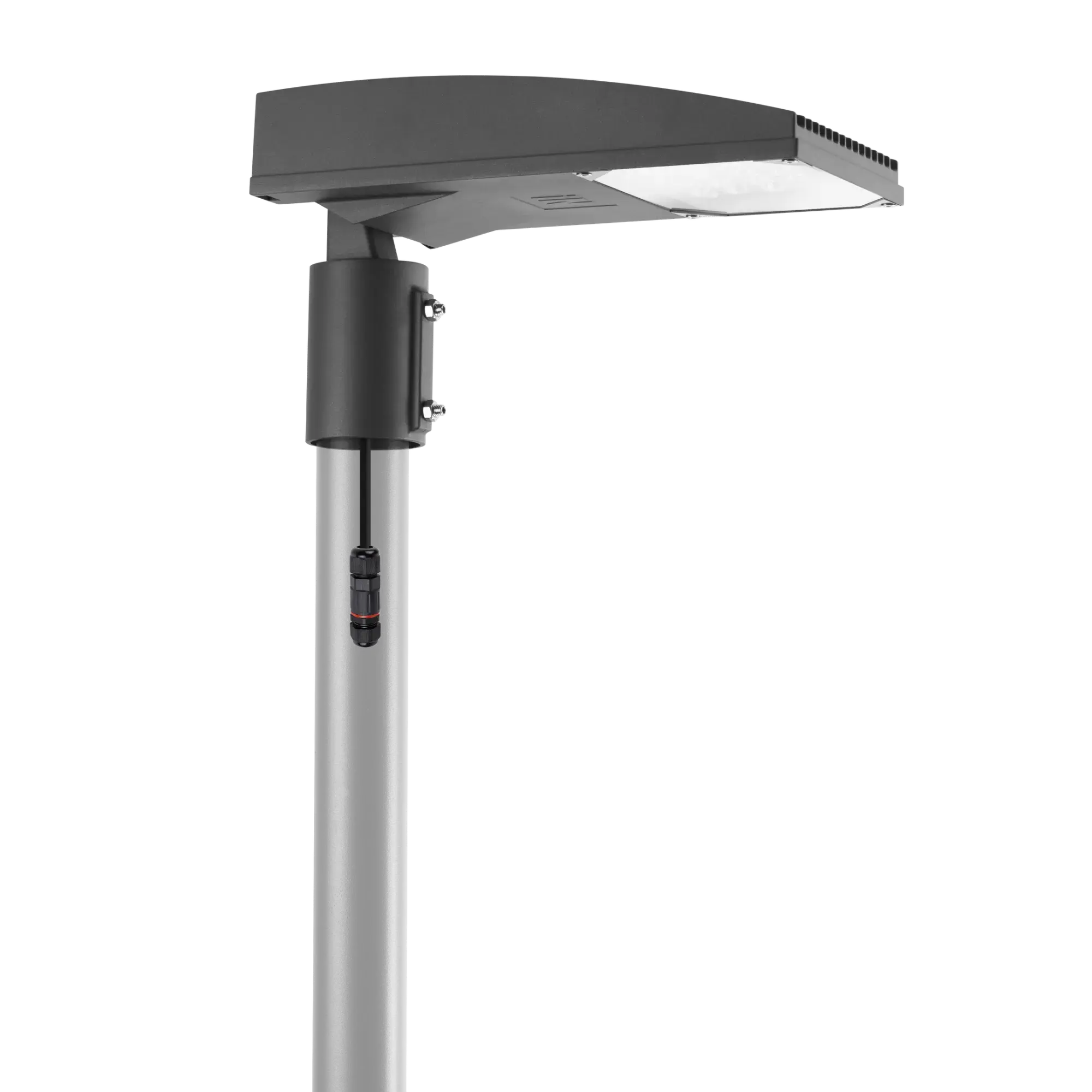

Performance iN Lighting 3119865 LED-Strassenleuchte 3000K 54W statisch Straßenbeleuchtungsoptik 3119865
Art. No.WSL5510012443 P/N3119865 EAN8018367738056 BrandPerformance iN Lighting
Adjustable optics No
Built-in battery No
Cable length 1 m
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour rendering index CRI 70-79
Colour temperature 3000 K
Conductor cross section 1.5 mm²
€311.31 incl. VAT
Availability In stock
Delivery time 2–3 working days
Returns 14-day right of withdrawal for consumers
Warranty Manufacturer warranty depending on the product
Product information
Performance iN Lighting LED-Strassenleuchte 3000K 54W statisch Straßenbeleuchtungsoptik 3119865
Performance iN Lighting 3119865
EAN 8018367738056
Description
LED Straßenleuchten, bestehend aus: Gehäuse und Abdeckung aus lackiertem Aluminiumdruckguss mit Polyesterpulverbeschichtung, nach vorhergehender chemischer Oberflächenbehandlung ISO 9227/12944 - ISO 9223 (C5). Mastbefestigung aus Aluminiumdruckguss, lackiert Polyesterpulverlack nach vorhergehender chemischer Behandlung; für Masten Ø 60 mm. Optik aus Technopolymer-Linsen mit erhöhter Lichtdurchlässigkeit. Hochelastische, verschleißfeste Silikondichtung. Diffusor aus extra klarem, gehärteten Sicherheits-Flachglas. Glas-Verschlussklemmen aus Edelstahl. Leuchte inklusive Konverter. Inklusive zusätzlicher Überspannungsschutz bis 10 kV (DM). Äußere Schrauben aus Edelstahl. Inkl. 0,2 m werkseitig montiertem Kabel H07RN-F. Mastbefestigung für Masten Ø 76 mm ist als Zubehör erhältlich. Erfüllt die Lichtverschmutzungsnormen UNI 10819. Design by GIORGIO LODI.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 3119865 |
|---|---|
| EAN | 8018367738056 |
| ETIM | EC000062 |
| Weight | 3.3 kg |
| Weight (Package) | 3.6 kg |
Designations
Aussenleuchten Außenbeleuchtung Außenleuchten LED Außenleuchte Mastleuchte Parkplatzbeleuchtung Straßenleuchte Straßenleuchten
Adjustable optics No
Built-in battery No
Cable length 1 m
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour rendering index CRI 70-79
Colour temperature 3000 K
Conductor cross section 1.5 mm²
Connectable conductor cross section 1.5
Connection type Other
Constant light output (CLO) No
Degree of protection (IP) IP66
Degree of protection (NEMA) 4
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DALI-2 No
Dimming DMX No
Dimming DSI No
Dimming LineSwitch No
Dimming RF No
Dimming Sine Wave Reduction No
Dimming Zigbee No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off No
Dimming phase cut-on No
Dimming programmable No
EF018708 No
EF018709 No
EF018710 No
EF018712 No
EF018714 6970
EF018948 No
EF019111 Yes
Energy efficiency class of the light source according to EU regulation 2019/2015 E
Exchangeable control gear Yes
Height/depth 180 mm
Housing colour Grey
Housing material Aluminium
Impact strength IK06
Lamp holder Other
Lamp type LED exchangeable
Length 370 mm
Light distributor Diffuser lens/optic/panel
Luminaire efficacy 191 lm/W
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 Yes
Material cover Glass transparent
Max. number of luminaires per miniature circuit breaker B16 (MCB) 12
Max. number of luminaires per miniature circuit breaker C16 (MCB) 22
Max. system power 54 W
Mounting method Other
Nominal voltage 220 V
Number of poles 2
Operation by Bluetooth No
Power factor 0.98
Protection class II
Rated ambient temperature according to IEC 62722-2-1 -40 °C
Rated life time L70/B50 at 25 °C 360000 h
Remote control None
Suitable for lamp power 54 W
Suitable for number of light sources 16
Suitable for spigot size 60 mm
Surface protection Powder coating
Type of connection for sensor/communication module Other
Type of control gear Electronic ballast
Type of wiring Ending
Voltage type AC
Width 220 mm
With connection cable Yes
With control gear Yes
With light regulation program control No
With light sensor No
With light source Yes
With movement sensor No
With presence indicator No
With radio control No
Dimmable No
