Ceiling-/wall luminaire
Performance iN Lighting 8629661283430 LED-Anbauleuchte 4000K 26W statisch Mikroprisma 8629661283430
Art. No.WSL5510013683 P/N8629661283430 EAN4052075184808 BrandPerformance iN Lighting
Beam angle Extreme wide beam >80°
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 4000 K
Compatible with Amazon Alexa No
€361.58 incl. VAT
Availability In stock
Delivery time 2–3 working days
Returns 14-day right of withdrawal for consumers
Warranty Manufacturer warranty depending on the product
Product information
Performance iN Lighting LED-Anbauleuchte 4000K 26W statisch Mikroprisma 8629661283430
Performance iN Lighting 8629661283430
EAN 4052075184808
Description
Anbauleuchte SL629 mit Hochleistungs-LED. Leuchtenleistung 26W. Universell einsetzbare Langfeldleuchte für den Office-Bereich. Klare Formsprache und zurückhaltende Optik unterstützen eine harmonische Einbindung in die vorhandene Architektur. Besondere Eignung für großflächige Büro- und Bildungseinrichtungen durch einfache Wartung, große technische Variabilität und ausgewogenes Preis-Leistungs-Verhältnis. Leuchtengehäuse aus Stahlblech. Light-Engine mittels Einschubmechanik auswechselbar. Prismatische Lichtoptik für effiziente Lichtstreuung, Blendungsminimierung und eine hohe Gleichmäßigkeit. Integrierter hochtransmittierender Lichtleiter. Direkt strahlend. Homogene Leuchtdichteverteilung über die gesamte Lichtaustrittsfläche (LED Sidelight-Technologie). BAP-geeignet nach DIN EN 12464-1.
Documents & Downloads
Product Attributes
Technical data
| P/N (Part Number) | 8629661283430 |
|---|---|
| EAN | 4052075184808 |
| ETIM | EC002892 |
| Weight | 7.91 kg |
| Weight (Package) | 9.1 kg |
Designations
Anbauleuchte Anbauleuchten Aufbauleuchte Bürobeleuchtung Büroleuchten Deckenanbauleuchte Deckenaufbauleuchte Deckenleuchte Innenleuchten LED-Leuchte
Beam angle Extreme wide beam >80°
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 4000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Compatible with Casambi No
Compatible with Google Assistant No
Conductor cross section 1.5 mm²
Connectable conductor cross section 1
Connection type Push-in clamp
Constant light output (CLO) No
Covering of the luminaire with thermally insulating material possible No
Degree of protection (IP) IP20
Degree of protection (IP), rear side IP20
Degree of protection (NEMA) 1
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DALI-2 No
Dimming DMX No
Dimming DSI No
Dimming RF No
Dimming Touch and Dim No
Dimming Zigbee No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off No
Dimming phase cut-on No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming with push-button No
EF018713 124
EF018714 3220
EF018918 None
EF018921 None
EF019111 Yes
EF019441 52
EFDE0115 No
Energy efficiency class of the light source according to EU regulation 2019/2015 D
Exchangeable control gear Yes
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) 0.8 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) 1 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) 1.2 %
Filament test according to IEC 60695-2-11 650 °C - 30 s
Flickering value Pst LM 0.4

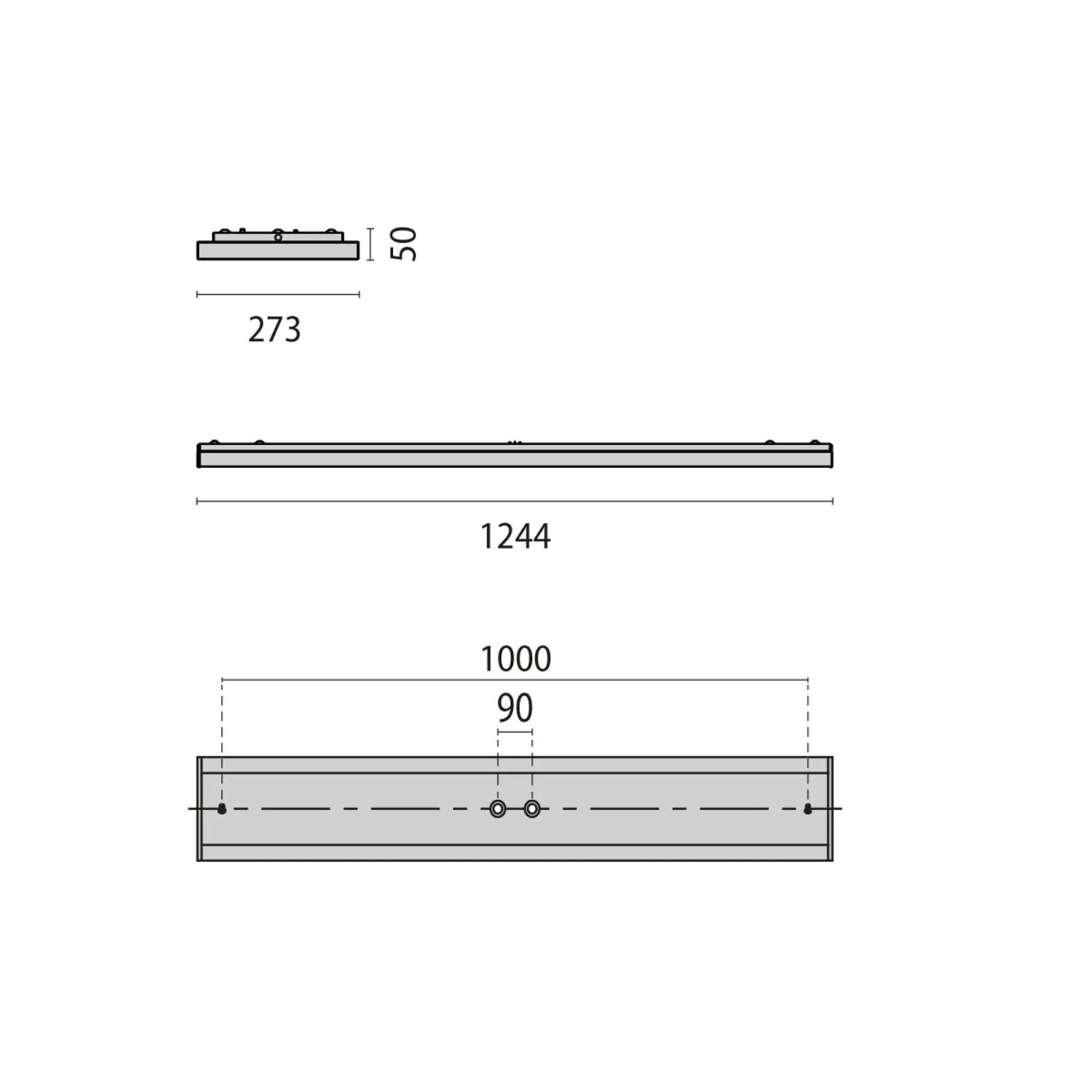

Height/depth 50 mm
Housing colour Grey
Housing material Steel
IFTTT support available No
Impact strength IK05
Lamp holder Other
Lamp type LED not exchangeable
Length 1244 mm
Light distributor Other
Light outlet Direct
Light sharing Symmetric
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) 79 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 70 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) 55 %
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Luminous flux adjustable No
Material cover Plastic, structured
Max. number of luminaires per miniature circuit breaker B16 (MCB) 50
Max. number of luminaires per miniature circuit breaker C16 (MCB) 85
Max. system power 26 W
Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C) No
Nominal current 108 mA
Nominal voltage 220 V
Number of poles 3
Operation by Bluetooth No
Photobiological safety according to EN 62471 RG0
Power factor 0.89
Protection class I
Rated ambient temperature according to IEC 62722-2-1 10 °C
Rated life time L70/B50 at 25 °C 99800 h
Stroboscope effect value SVM 0.7
Suitable for built-in mounting No
Suitable for ceiling mounting Yes
Suitable for clamp-mounting No
Suitable for emergency lighting No
Suitable for lamp power 23 W
Suitable for light line configuration No
Suitable for number of light sources 1
Suitable for surface mounting Yes
Suitable for suspended mounting No
Suitable for wall mounting No
Suitable for workplace according to EN 12464-1 Yes
Surface protection housing Powder coating
Type of control gear LED operating device current-controlled
Type of grid None
Type of wiring Suitable for through wiring
Unified Glare Ratio (UGR) 19
Voltage type AC
Width 273 mm
With air slots No
With control gear Yes
With light sensor No
With light source Yes
With mounting material Yes
With movement sensor No
With presence indicator No
With switch No
Dimmable No
