Apparecchio di illuminazione a sospensione
Performance iN Lighting 8726441866310 LED-Pendelleuchte 3000K 83W DALI Reflektor hochglanz d+i 8726441866310
Cod. art.WSL5510013866 P/N8726441866310 EAN4052075194371 MarcaPerformance iN Lighting
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 3000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
1.422,75 € IVA inclusa
Disponibilità Disponibile a magazzino
Tempo di consegna 2–3 giorni lavorativi
Reso Diritto di recesso di 14 giorni per i consumatori
Garanzia Garanzia del produttore in base al prodotto
Informazioni sul prodotto
Performance iN Lighting LED-Pendelleuchte 3000K 83W DALI Reflektor hochglanz d+i 8726441866310
Performance iN Lighting 8726441866310
EAN 4052075194371
Descrizione
Pendelleuchte Small Line mit Hochleistungs-LED. Leuchtenleistung 83W. Innovative Pendelleuchte in ultra-linearem Design. Einzigartige 3-Stegoptik ermöglicht Durchsicht. Hocheffiziente Einzelentblendung für maximale Lichtqualität. High-End-Beleuchtungslösung im Office-Bereich. Einzelstränge aus Aluminium-Strangpressprofil. Kopfstückverbinder aus Aluminiumdruckguss. Gezielte Lichtlenkung durch Einzel-LED-Hochglanzreflektoreinsatz für effiziente Entblendung. Effizienz-Plus durch minimale Verschattung des Indirektanteils dank 100%iger Transmission in den Stegzwischenräumen. Direkt- indirekt strahlend. Blendfreie Reflektortechnik erzeugt fokussierende Beleuchtungszonen. Hohe Lichtqualität unterstützt anspruchsvolle Sehaufgaben. Indirektanteil erzeugt visuelle Öffnung des Raumes durch großzügige Deckenaufhellung mit kontinuierlichem Leuchtdichteverlauf. BAP-geeignet nach DIN EN 12464-1.
Documenti e download
Attributi del prodotto
Dati tecnici
| P/N (Codice articolo) | 8726441866310 |
|---|---|
| EAN | 4052075194371 |
| ETIM | EC001743 |
| Peso | 1.6 kg |
| Peso (pacco) | 1.8 kg |
Designazioni
Bürobeleuchtung Büroleuchten Direkt- /Indirekt-Leuchte Einzelleuchte Hängeleuchte I/D-Leuchte Innenleuchten Innenraumleuchte LED-Hängeleuchte LED-Leuchte LED-Pendelleuchte Pendelleuchte Pendelleuchten
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour rendering index CRI 80-89
Colour temperature 3000 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Compatible with Casambi No
Compatible with Google Assistant No
Conductor cross section 1.5 mm²
Connectable conductor cross section 1
Connection type Push-in clamp
Constant light output (CLO) No
Degree of protection (IP) IP20
Degree of protection (NEMA) 1
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI Sì
Dimming DALI-2 No
Dimming DMX No
Dimming DSI No
Dimming RF No
Dimming Touch and Dim Sì
Dimming Zigbee No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off No
Dimming phase cut-on No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming with push-button Sì
Direct-/indirect proportion separately controllable No
EF018713 128
EF018714 10590
EF018918 None
EF018921 None
EF019111 Sì
Energy efficiency class of the light source according to EU regulation 2019/2015 D
Exchangeable control gear Sì
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) 1 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) 1.2 %
Filament test according to IEC 60695-2-11 650 °C - 30 s
Flickering value Pst LM 0.7

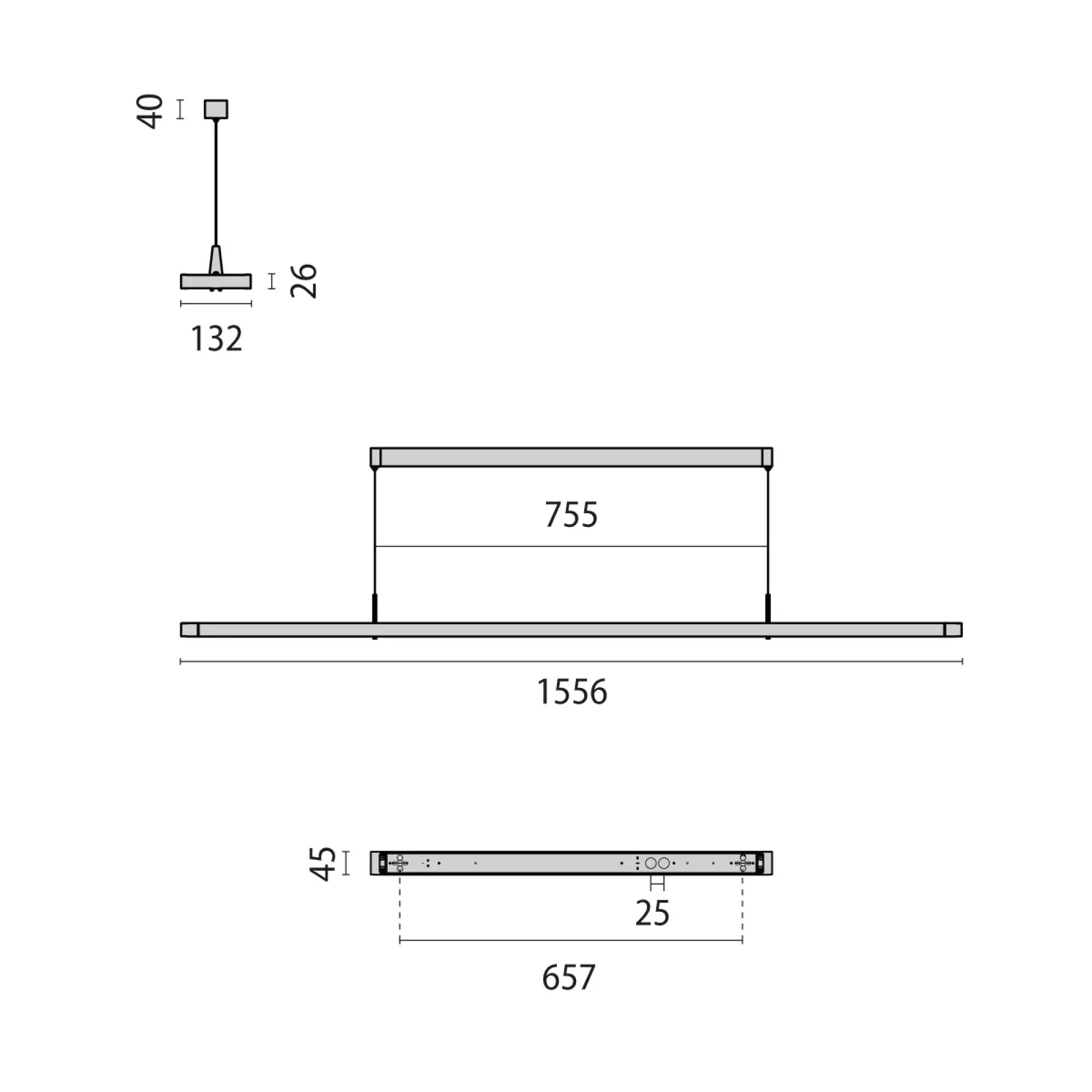

Height/depth 26 mm
Housing colour White
Housing material Aluminium
IFTTT support available No
Impact strength IK03
Lamp holder None
Lamp type LED exchangeable
Length 1556 mm
Light distributor Reflector
Light outlet Direct/indirect
Light sharing Symmetric
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 70 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) 55 %
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Luminous flux adjustable No
Max. number of luminaires per miniature circuit breaker B16 (MCB) 13
Max. system power 83 W
Nominal current 346 mA
Nominal voltage 220 V
Number of poles 5
Operation by Bluetooth No
Pendant length 150 mm
Power factor 0.9
Protection class I
Rated life time L70/B50 at 25 °C 99800 h
Reflector High-gloss
Stroboscope effect value SVM 0.4
Suitable for emergency lighting No
Suitable for lamp power 75 W
Suitable for light line configuration No
Suitable for number of light sources 1
Suitable for workplace according to EN 12464-1 Sì
Type of control gear LED operating device current-controlled
Type of grid None
Type of wiring Suitable for through wiring
Unified Glare Ratio (UGR) 16
Voltage type AC/DC
Width 132 mm
With control gear Sì
With light sensor No
With light source Sì
With movement sensor No
With presence indicator No
With suspension Sì
Dimmable Yes
