Plafond-/wandarmatuur

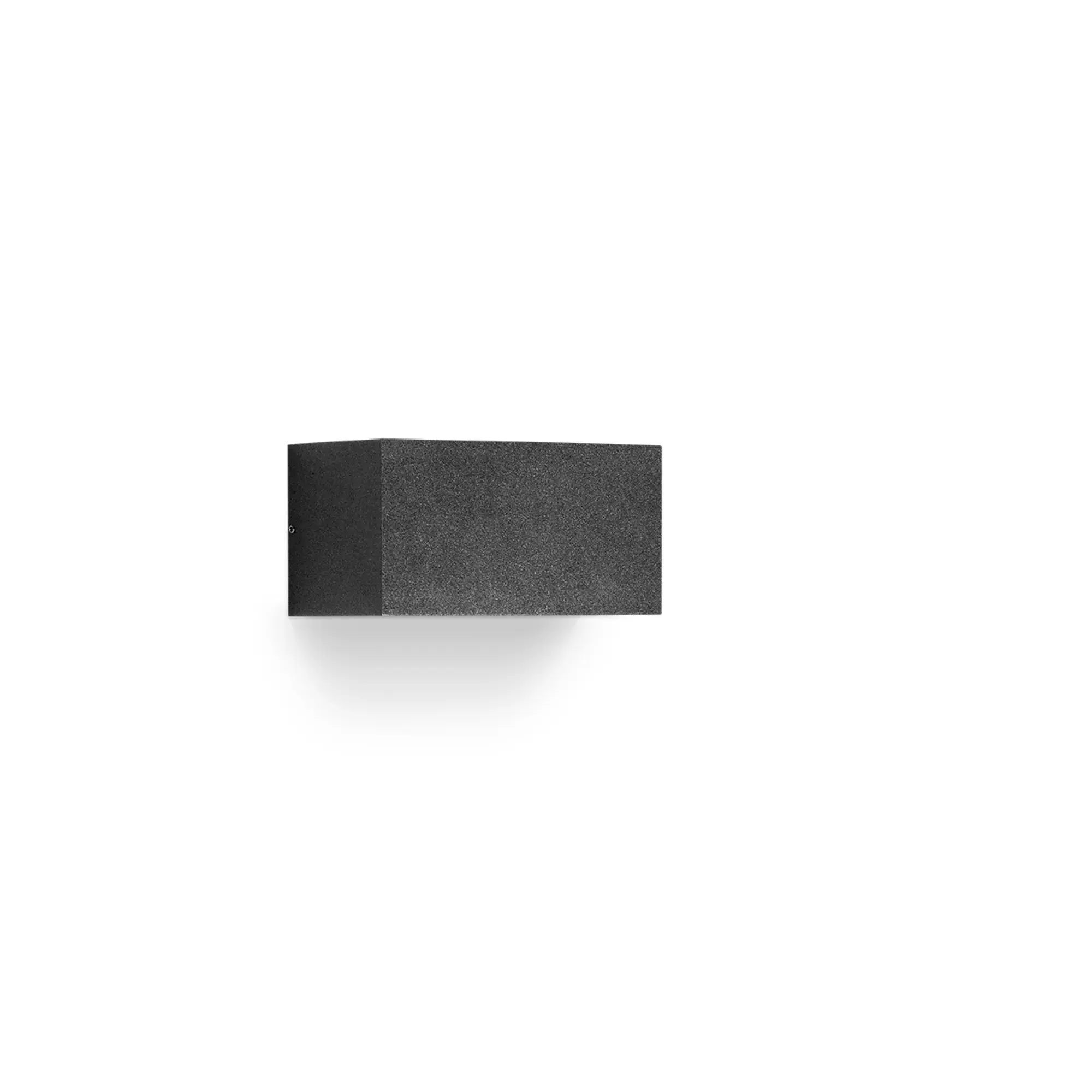

Performance iN Lighting 303540 LED-Wandleuchte 3000K 11W statisch symmetrische extrabreite Streuoptik 303540
Art.nr.WSL5510007973 P/N303540 EAN8018367615647 MerkPerformance iN Lighting
Beam angle Open beam/diffuse
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour temperature 3000 K
Compatible with Amazon Alexa Nee
Compatible with Apple HomeKit Nee
€ 156,69 incl. btw
Beschikbaarheid Op voorraad
Levertijd 2–3 werkdagen
Retour 14 dagen herroepingsrecht voor particuliere klanten
Garantie Fabrieksgarantie afhankelijk van het product
Productinformatie
Performance iN Lighting LED-Wandleuchte 3000K 11W statisch symmetrische extrabreite Streuoptik 303540
Performance iN Lighting 303540
EAN 8018367615647
Beschrijving
Wandleuchte für den Innen- und Außenbereich, bestehend aus: Gehäuse aus lackiertem Aluminiumdruckguss. Diffusor aus Glas mit lackierter Innenseite für eine gleichmäßige Lichtverteilung. Reflektor aus mattiertem Reinstaluminium (Al 99.98). Silikondichtung. Inklusive elektronischem Vorschaltgerät.
Documenten & Downloads
Productkenmerken
Technische gegevens
| P/N (Onderdeelnummer) | 303540 |
|---|---|
| EAN | 8018367615647 |
| ETIM | EC002892 |
| Gewicht | 1.74 kg |
| Gewicht (verpakt) | 1.92 kg |
Benamingen
Aussenleuchten Außenbeleuchtung Außenleuchten Beleuchtung Garten Gartenleuchten LED Außenleuchte Wandanbauleuchten Wandleuchte Wandleuchte Außen
Beam angle Open beam/diffuse
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable No
Colour temperature 3000 K
Compatible with Amazon Alexa Nee
Compatible with Apple HomeKit Nee
Compatible with Casambi Nee
Compatible with Google Assistant Nee
Connectable conductor cross section 1.5
Connection type Push-in clamp
Constant light output (CLO) Nee
Covering of the luminaire with thermally insulating material possible Nee
Degree of protection (IP) IP65
Degree of protection (IP), rear side Other
Dimming 0-10 V Nee
Dimming 1-10 V Nee
Dimming DALI Nee
Dimming DALI-2 Nee
Dimming DMX Nee
Dimming DSI Nee
Dimming RF Nee
Dimming Touch and Dim Nee
Dimming Zigbee Nee
Dimming mains voltage modulation Nee
Dimming manufacturer's proprietary system Nee
Dimming phase cut-off Nee
Dimming phase cut-on Nee
Dimming potentiometer (integrated) Nee
Dimming programmable Nee
Dimming with push-button Nee
EF018713 44.7
EF018714 492
EF018918 None
EF019111 Ja
EF019128 20
EF019441 52
EFDE0115 Nee
Energy efficiency class of the light source according to EU regulation 2019/2015 D
Exchangeable control gear Ja
Filament test according to IEC 60695-2-11 None
Height/depth 100 mm
Housing colour Anthracite
Housing material Aluminium
IFTTT support available Nee
Impact strength IK06
Lamp holder Other
Lamp type LED not exchangeable
Length 100 mm
Light outlet Direct
Light sharing Symmetric
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) 94.5 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 92.2 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) 88.5 %
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 Nee
Luminous flux adjustable No
Material cover Glass opal
Max. number of luminaires per miniature circuit breaker B16 (MCB) 50
Max. number of luminaires per miniature circuit breaker C16 (MCB) 85
Max. system power 11 W
Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C) Nee
Nominal voltage 220 V
Number of poles 3
Operation by Bluetooth Nee
Photobiological safety according to EN 62471 RG1
Protection class I
Rated ambient temperature according to IEC 62722-2-1 -20 °C
Suitable for built-in mounting Nee
Suitable for ceiling mounting Nee
Suitable for clamp-mounting Nee
Suitable for emergency lighting Nee
Suitable for lamp power 12.5 W
Suitable for light line configuration Nee
Suitable for number of light sources 1
Suitable for surface mounting Nee
Suitable for suspended mounting Nee
Suitable for wall mounting Ja
Suitable for workplace according to EN 12464-1 Nee
Surface protection housing Lacquered
Type of control gear LED operating device current-controlled
Type of grid None
Voltage type AC
Width 200 mm
With air slots Nee
With control gear Ja
With light sensor Nee
With light source Ja
With mounting material Nee
With movement sensor Nee
With presence indicator Nee
With switch Nee
Dimmable No
