Luminaria de techo/pared
Performance iN Lighting 3115928 LED-Anbauleuchte 2700K 33W DALI DT8 BT Mikroprisma d+i 3115928
N.º de art.WSL5510011698 P/N3115928 EAN4046075145501 MarcaPerformance iN Lighting
Beam angle Extreme wide beam >80°
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable Continuously variable
Colour rendering index CRI 80-89
Colour temperature 2700 K
Compatible with Amazon Alexa No
1.194,00 € IVA incluido
Disponibilidad En stock
Plazo de entrega 2–3 días laborables
Devolución 14 días de derecho de desistimiento para consumidores
Garantía Garantía del fabricante según el producto
Información del producto
Performance iN Lighting LED-Anbauleuchte 2700K 33W DALI DT8 BT Mikroprisma d+i 3115928
Performance iN Lighting 3115928
EAN 4046075145501
Descripción
Anbauleuchte SL720+ mit Hochleistungs-LED. Leuchtenleistung 33W. Normgerecht entblendete Arbeitsplatzleuchte für flexible und individuelle Anordnung. Besonders innovativ und effizient durch extra flaches Design (20mm). Nutzung für die innovative und komfortable Bürobeleuchtung. Leuchtengehäuse aus Aluminium-Strangpressprofil. Light-Engine mittels Einschubmechanik auswechselbar. Mikroprismenabdeckung für effiziente Lichtstreuung, Blendungsminimierung und eine hohe Gleichmäßigkeit. Integrierter hochtransmittierender Lichtleiter. Direkt strahlend mit Corona zur Deckenaufhellung. Homogene Leuchtdichteverteilung über die gesamte Lichtaustrittsfläche (LED Sidelight-Technologie). Blendfreie Mikroprismenabdeckung sorgt für eine attraktive Raumatmosphäre. Hohe Lichtqualität unterstützt anspruchsvolle Sehaufgaben. BAP-geeignet nach DIN EN 12464-1.
Documentos y Descargas
Atributos del producto
Datos técnicos
| P/N (Número de pieza) | 3115928 |
|---|---|
| EAN | 4046075145501 |
| ETIM | EC002892 |
| Peso | 7.83 kg |
| Peso (embalaje) | 9.23 kg |
Designaciones
Anbauleuchte Anbauleuchten Aufbauleuchte Bürobeleuchtung Büroleuchten Deckenanbauleuchte Deckenaufbauleuchte Deckenleuchte Innenleuchten LED-Leuchte Mikroprismenleuchte Prismenleuchte Tunable white
Beam angle Extreme wide beam >80°
Beam angle adjustable No
Colour consistency (McAdam ellipse) SDCM3
Colour of light White
Colour of light adjustable Continuously variable
Colour rendering index CRI 80-89
Colour temperature 2700 K
Compatible with Amazon Alexa No
Compatible with Apple HomeKit No
Compatible with Casambi No
Compatible with Google Assistant No
Conductor cross section 1.5 mm²
Connectable conductor cross section 1
Connection type Push-in clamp
Constant light output (CLO) No
Covering of the luminaire with thermally insulating material possible No
Degree of protection (IP) IP20
Degree of protection (IP), rear side IP20
Degree of protection (NEMA) 1
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI Sí
Dimming DALI-2 No
Dimming DMX No
Dimming DSI No
Dimming RF No
Dimming Touch and Dim No
Dimming Zigbee No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off No
Dimming phase cut-on No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming with push-button No
EF018697 Passive infrared
EF018713 112
EF018714 3690
EF018918 None
EF018921 None
EF019111 Sí
EF019441 21
EFDE0115 No
Energy efficiency class of the light source according to EU regulation 2019/2015 E
Exchangeable control gear Sí
Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) 0.8 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) 1 %
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq) 1.2 %
Filament test according to IEC 60695-2-11 650 °C - 30 s
Flickering value Pst LM 0.7

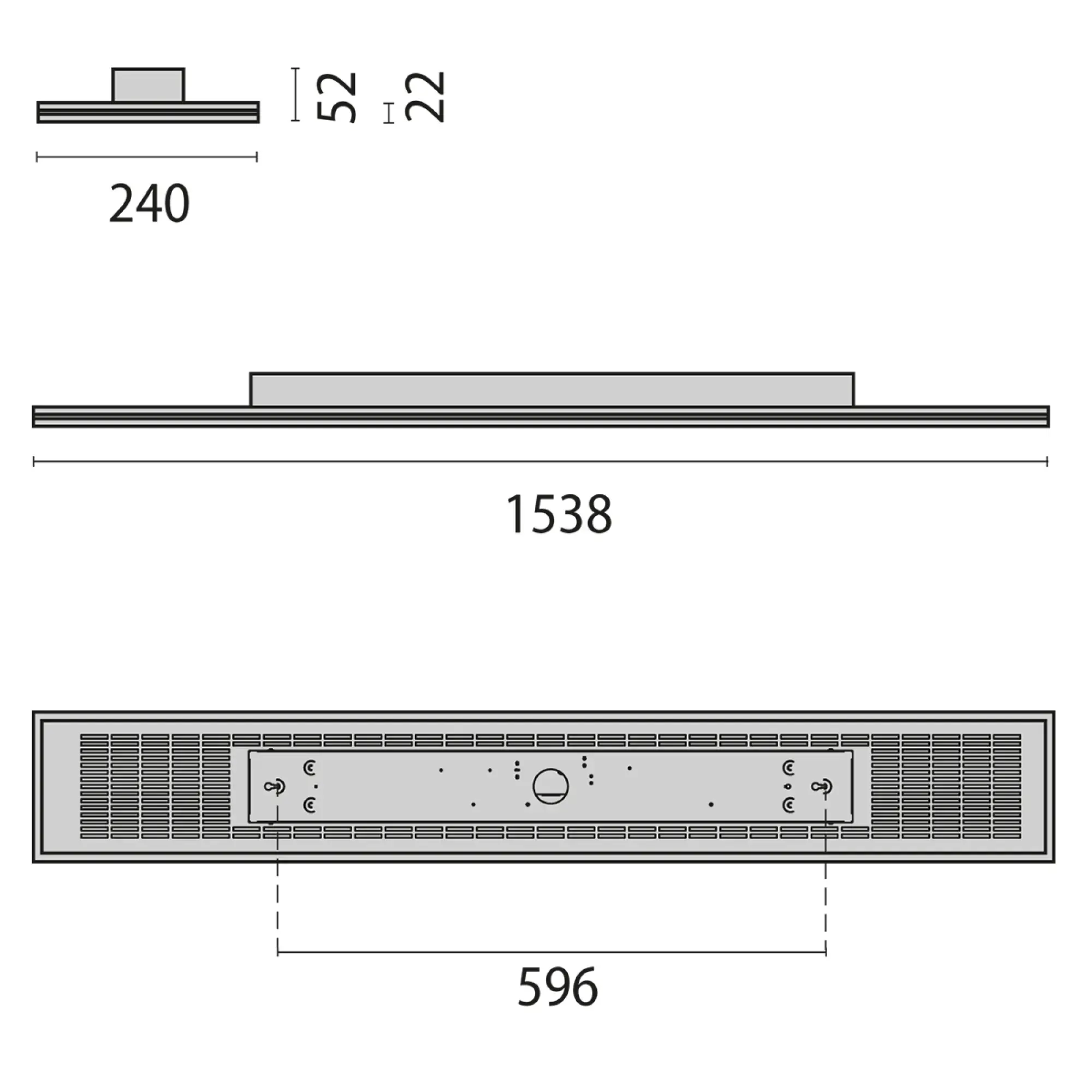

Height/depth 57 mm
Housing colour Grey
Housing material Aluminium
IFTTT support available No
Impact strength IK05
Lamp type LED exchangeable
Length 1538 mm
Light distributor Diffuser lens/optic/panel
Light outlet Direct
Light sharing Symmetric
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) 79 %
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) 70 %
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) 55 %
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 No
Luminous flux adjustable No
Material cover Plastic, structured
Max. number of luminaires per miniature circuit breaker B16 (MCB) 22
Max. number of luminaires per miniature circuit breaker C16 (MCB) 36
Max. system power 33 W
Meets min. EIA service life criterion L90 (at 50,000 hours at tq = 25°C) No
Nominal current 138 mA
Nominal voltage 220 V
Number of poles 3
Operation by Bluetooth No
Photobiological safety according to EN 62471 RG0
Power factor 0.9
Protection class I
Rated ambient temperature according to IEC 62722-2-1 10 °C
Rated life time L70/B50 at 25 °C 99800 h
Stroboscope effect value SVM 0.4
Suitable for built-in mounting No
Suitable for ceiling mounting Sí
Suitable for clamp-mounting No
Suitable for emergency lighting No
Suitable for lamp power 30 W
Suitable for light line configuration No
Suitable for number of light sources 1
Suitable for surface mounting Sí
Suitable for suspended mounting No
Suitable for wall mounting No
Suitable for workplace according to EN 12464-1 Sí
Surface protection housing Powder coating
Type of control gear LED operating device current-controlled
Type of wiring Suitable for through wiring
Unified Glare Ratio (UGR) 19
Voltage type AC/DC
Width 240 mm
With air slots No
With control gear Sí
With light sensor Sí
With light source Sí
With mounting material Sí
With movement sensor Sí
With presence indicator Sí
With switch No
Dimmable Yes
